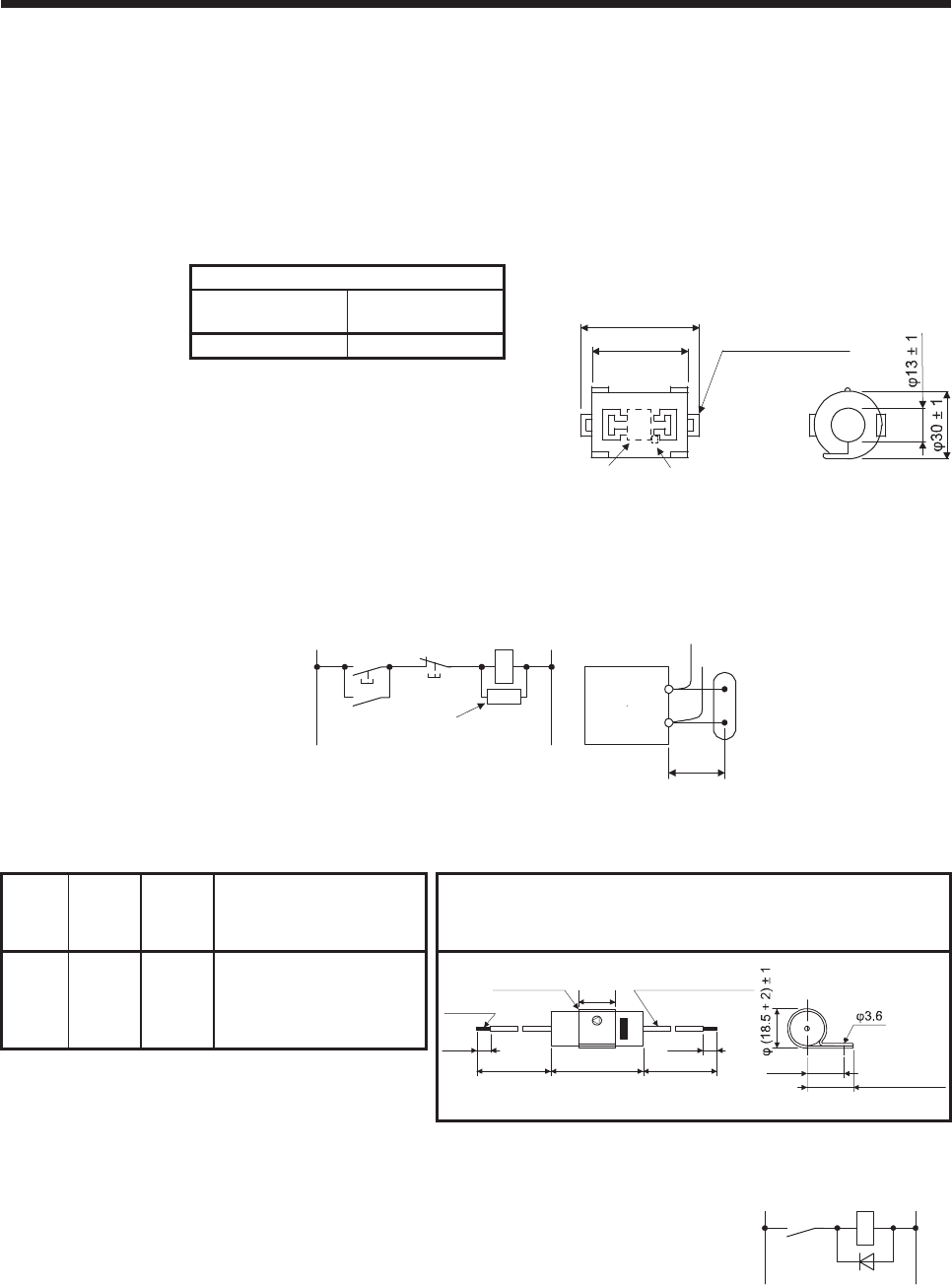

11. Options and peripheral devices

11 - 42

(2) Noise reduction techniques

(a) Data line filter (recommended)

Noise can be prevented by installing a data line filter onto the encoder cable, etc.

For example, the ZCAT3035-1330 by TDK, the ESD-SR-250 by NEC TOKIN, and GRFC-13 by

Kitagawa Industries are available as data line filters.

As a reference example, the impedance specifications of the ZCAT3035-1330 (TDK) are indicated

below. This impedances are reference values and not guaranteed values.

Impedance [ȍ]

10 MHz to 100 MHz

100 MHz to 500

MHz

80 150

[Unit: mm]

Outline drawing (ZCAT3035-1330)

Loop for fixing the

cable band

Lot number

Product name

TDK

39 ± 1

34 ± 1

(b) Surge killer (recommended)

The recommended surge killer for installation to an AC relay, AC valve or the like near the servo

amplifier is shown below. Use this product or equivalent.

Surge killer

Relay

Surge killer

OFF

This distance should be short

(within 20 cm).

(Ex.) CR-50500 (OKAYA Electric Industries Co., Ltd.)

Rated

voltage

Voltage

AC [V]

[ȝF ±

20%]

[ȍ ±

30%]

Test voltage Dimensions

250 0.5

50 (1/2

Between terminals: 625 V AC

50/60 Hz 60 s

Between terminal and case:

2,000 V AC 50/60 Hz 60 s

6 ± 1

300 mim 300 mim

Soldered

Band (clear) AWG18 Twisted wire

15 ± 1

48 ± 1.5

CR-10201

6 ± 1

16 ± 1

(18.5 + 5) max.

Note that a diode should be installed to a DC relay or the like.

Maximum voltage: Not less than 4 times the drive voltage of the relay or

the like

Maximum current: Not less than twice the drive current of the relay or the

Diode
