1 Hardware Overview 1.9 Keyboard
1-24 [CONFIDENTIAL] Satellite A50S/TECRA A3X Maintenance Manual (960-534)
1.9 Keyboard
An 85(US)-/86(UK)- key keyboard is mounted on the system unit. The keyboard is
connected to membrane connector on the system board and controlled by the keyboard
controller.
Figure 1-10 shows a view of the keyboard.
See Appendix E for details of the keyboard layout.

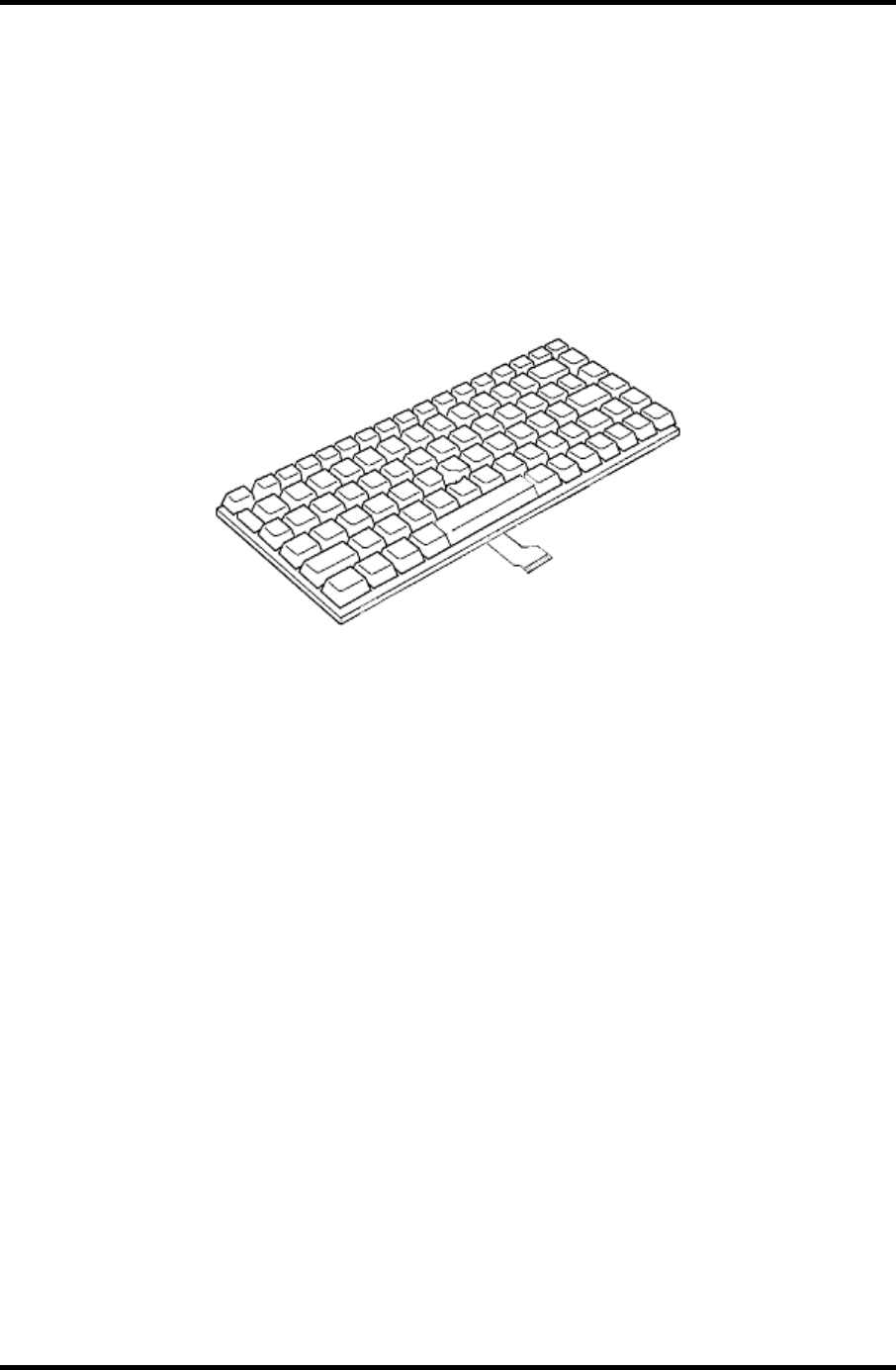

Figure 1-10 Keyboard
