4.13 Parallel port board / Serial port board / S-Video board 4 Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-45
Installing the S-Video board
The following describes the procedure for installing the S-Video board (See Figure 4-27, 4-
30).
1. Install the serial port board on the base assembly.
2. Connect the USB harness to the connector PJ4610 and the S-Video harness to the
connector PJ5640 on the S-Video board.
3. Pass the DC-IN harness, USB harness and S-Video harness along the guide of base
assembly.

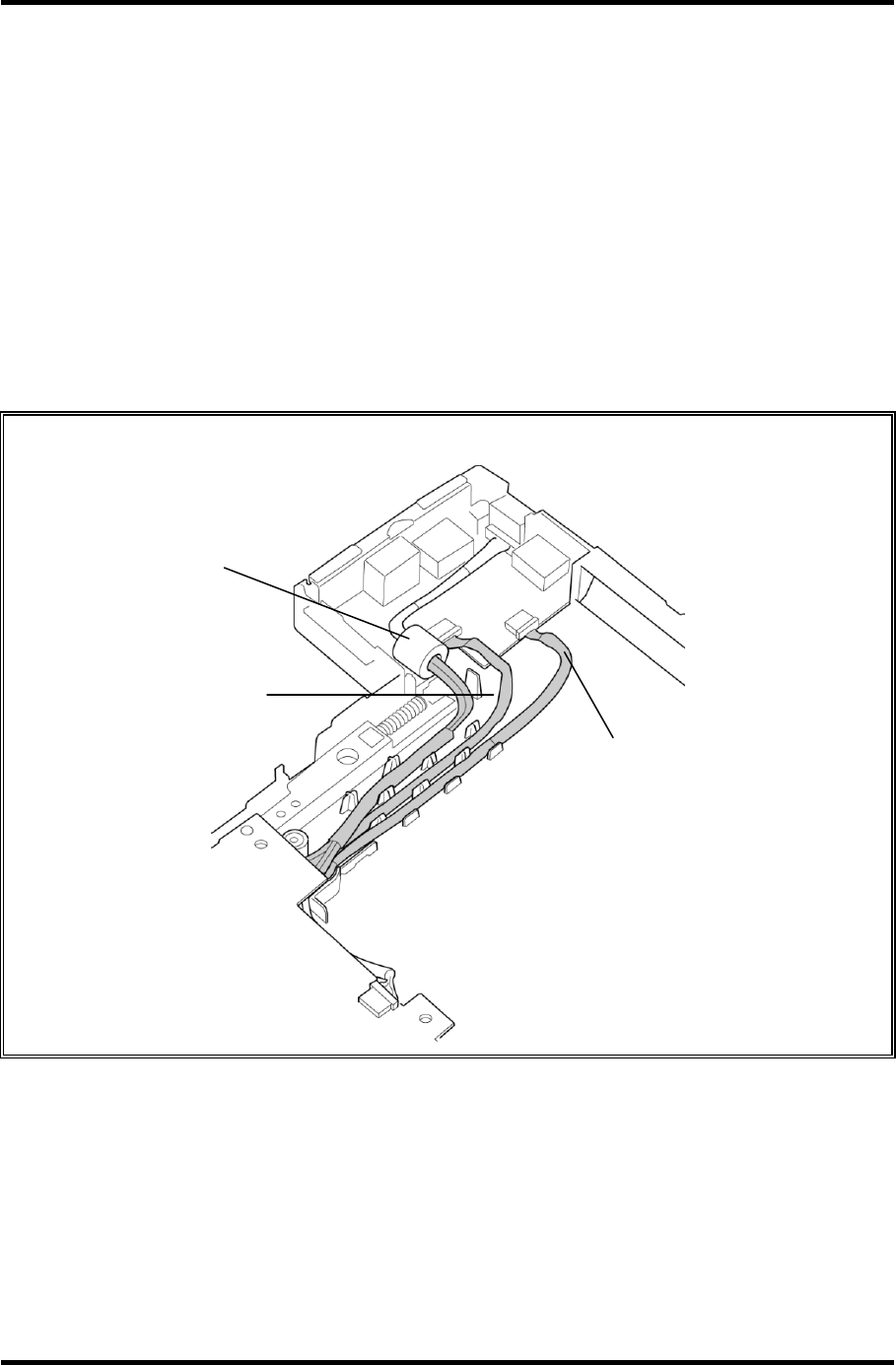

CAUTION:Pass the cables under harness holder as the following figure.
4. Install the harness holder and secure it with the following screws.
? M2.5x4B THIN BIND screw x2
5. Set the core of the DC-IN harness on the harness holder and install the DC-IN jack
in the slot of the base assembly.
S
-
Video harness
DC
-
IN harness
USB harness
