4.23 Fluorescent Lamp 4 Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-97
10. Stick the protection cover G (B), protection cover S (A), fixing tape (C) and fixing tape
for lead wire (D).

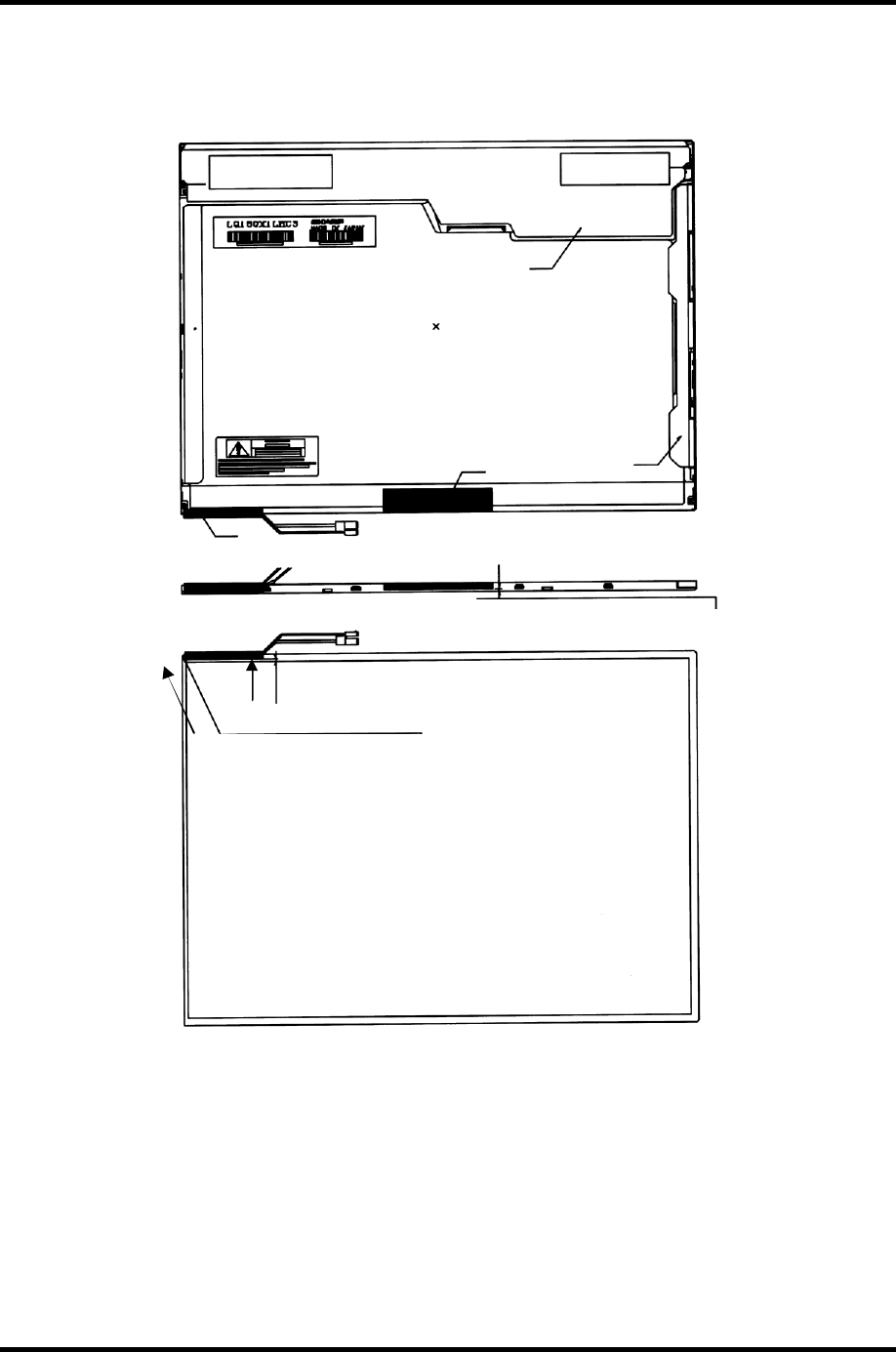

Figure 4-84 Replacing 15.0 Inch Sharp fluorescent lamp (XGA) (23)
The
tape MUST NOT appear on
the
display.
Stick
the
tape according to
the
outline of
the LCD module. Make sure the tape does
not appear on the side of the module.
Do not make
the
tape over the top of
the
module.
0 to 1 mm
(D)
(A)
(B)
(C)
