Replacement Procedures 4.23 Fluorescent Lamp
4-100 [CONFIDENTIAL] Satellite A50S/TECRA A3X Maintenance Manual (960-534)
3. Remove the source PCB.
1) Remove the source PCB. Be careful not to apply excessive force to the PCB and
TCP.

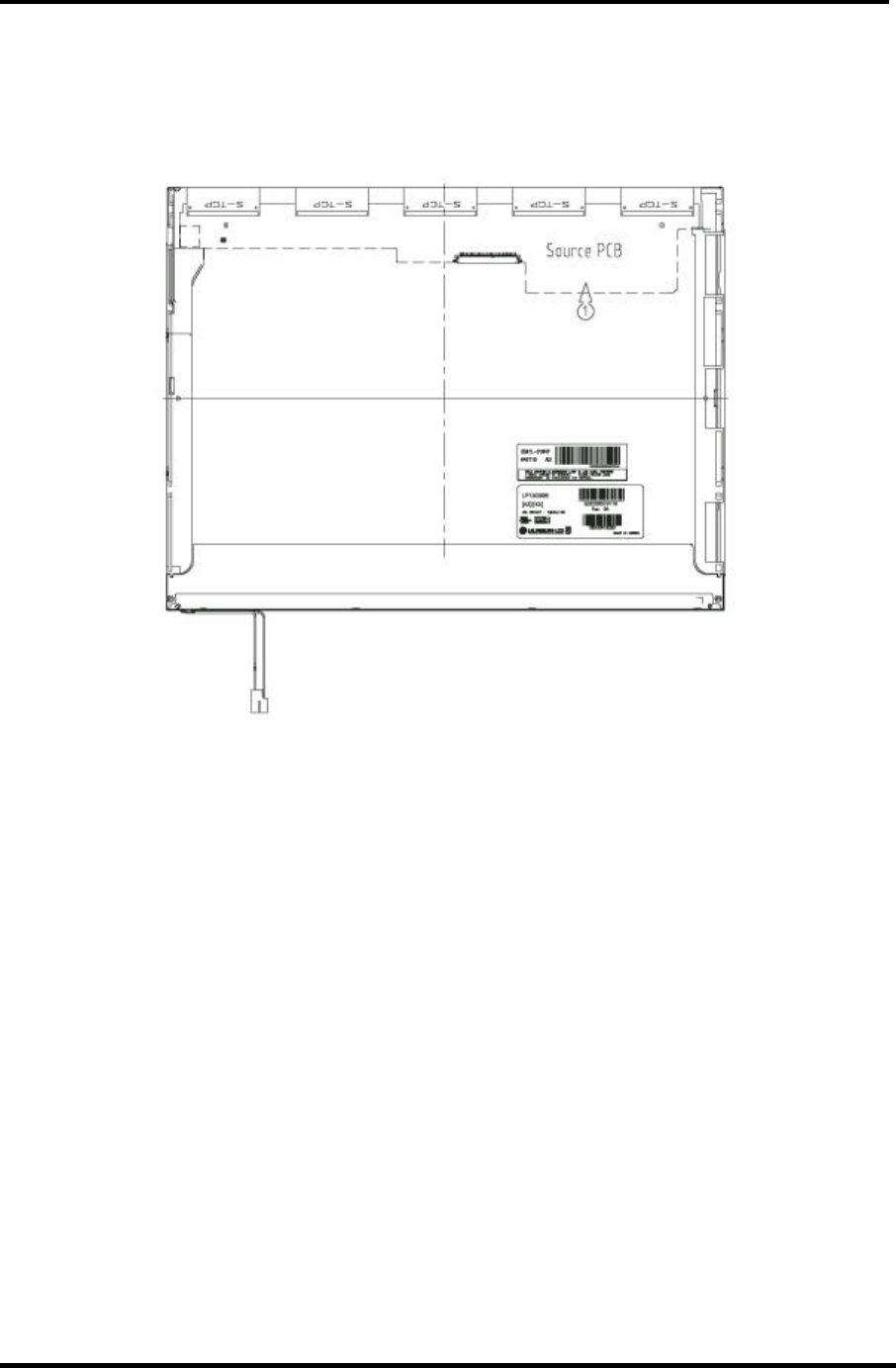

Figure 4-87 Replacing 15.0 Inch LG.Philips fluorescent lamp (XGA) (3)
