4.11 Display Assembly 4 Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-35
3. Turn the computer face up. Open the display and disconnect the speaker cables
(Blue, Red) from the connectors on the system board. Unlock the connector and
disconnect the touch pad cable from the system board.
4. Remove the following screw securing the LCD harness hold plate and remove the
LCD harness hold plate. Disconnect the LCD harness from the connector CN5000
on the system board.
? M2.5x8B THIN BIND screw x1
5. Remove the following screws securing the display assembly.
? M2x8B BIND screw x1
? M2.5x8B THIN BIND screw x1

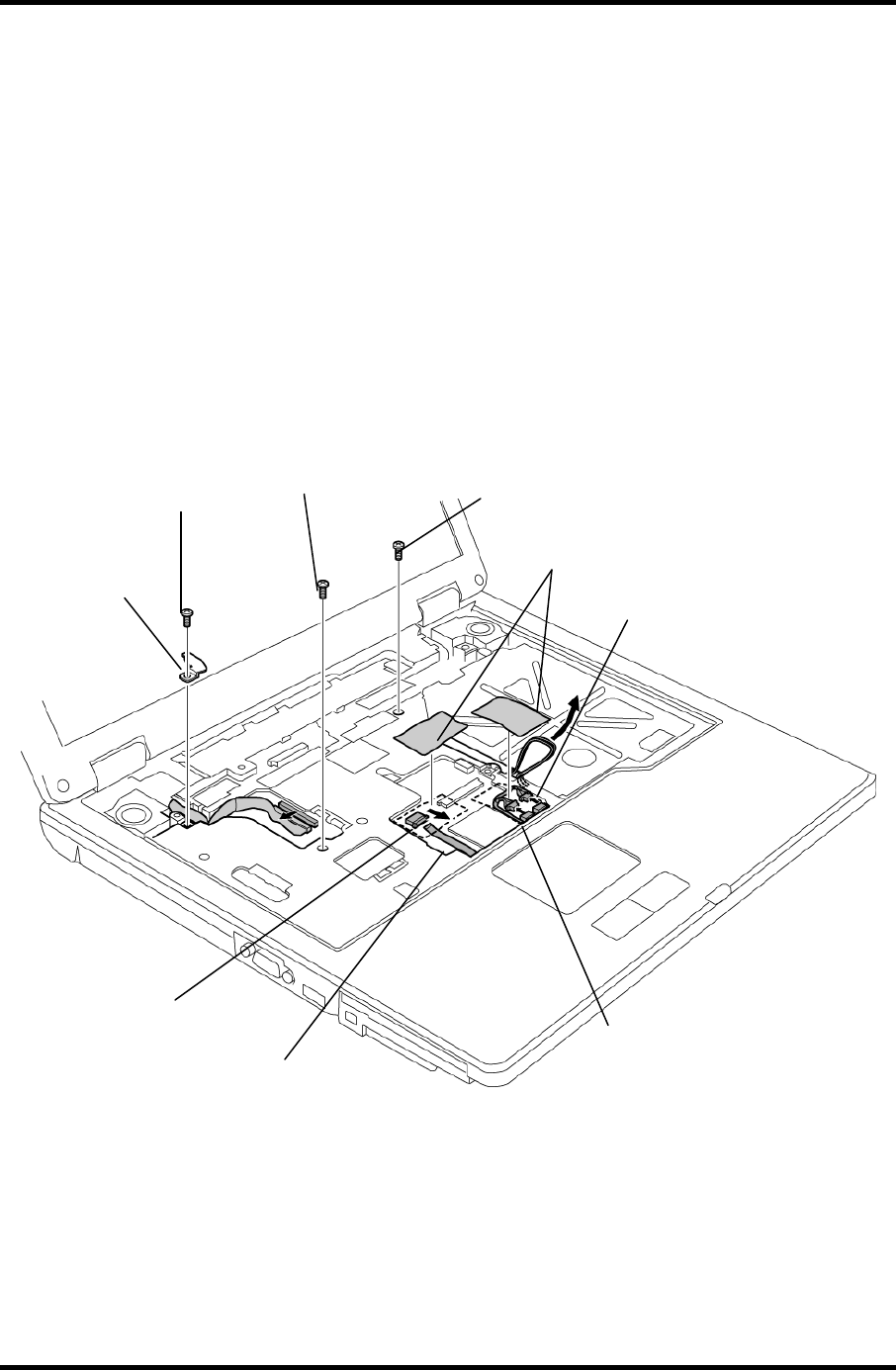

Figure 4-24 Removing screws and cables (under keyboard)
LCD harness
hold plate
Left Speaker Cable
(Connected to CN6001)
Touch Pad Cable
CN3240
M2.5x8B
THIN BIND
M2x8B
BIND
M2.5x8B
THIN BIND
Glass tape
Right Speaker Cable
(Connected to CN6002)
