4.5 HDD 4 Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-17
3. Holding the tab, pull horizontally the HDD ASSY to disconnect it from the connector
and remove it.

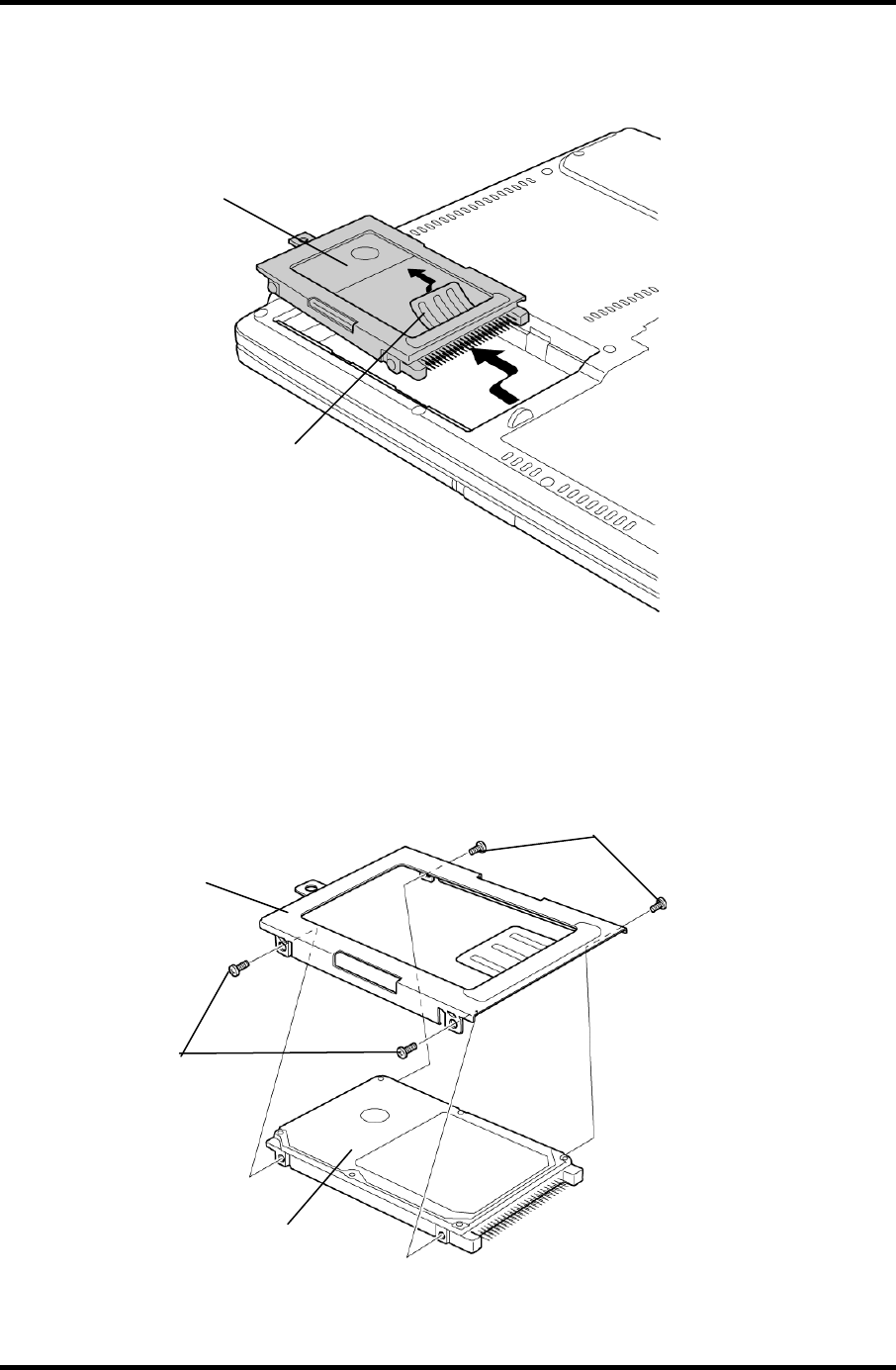

Figure 4-7 Removing HDD ASSY
4. Remove the following screws fixing the HDD.
? M3x4S THIN BIND screw x4
5. Remove the HDD holder from the HDD.
Figure 4-8 Removing HDD
Tab
HDD ASSY
M3x4S
THIN BIND
HDD
H
older
HDD
M3x4S
THIN BIND
