4.19 Touch Pad 4 Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-55
4.19 Touch Pad
Removing the Touch pad
The following describes the procedure for removing the touch pad (See Figure 4-36).
1. Remove the following screws securing the touch pad.
? M2.5x4B THIN BIND screw x6
2. Remove the touch pad and touch pad switch by raising.

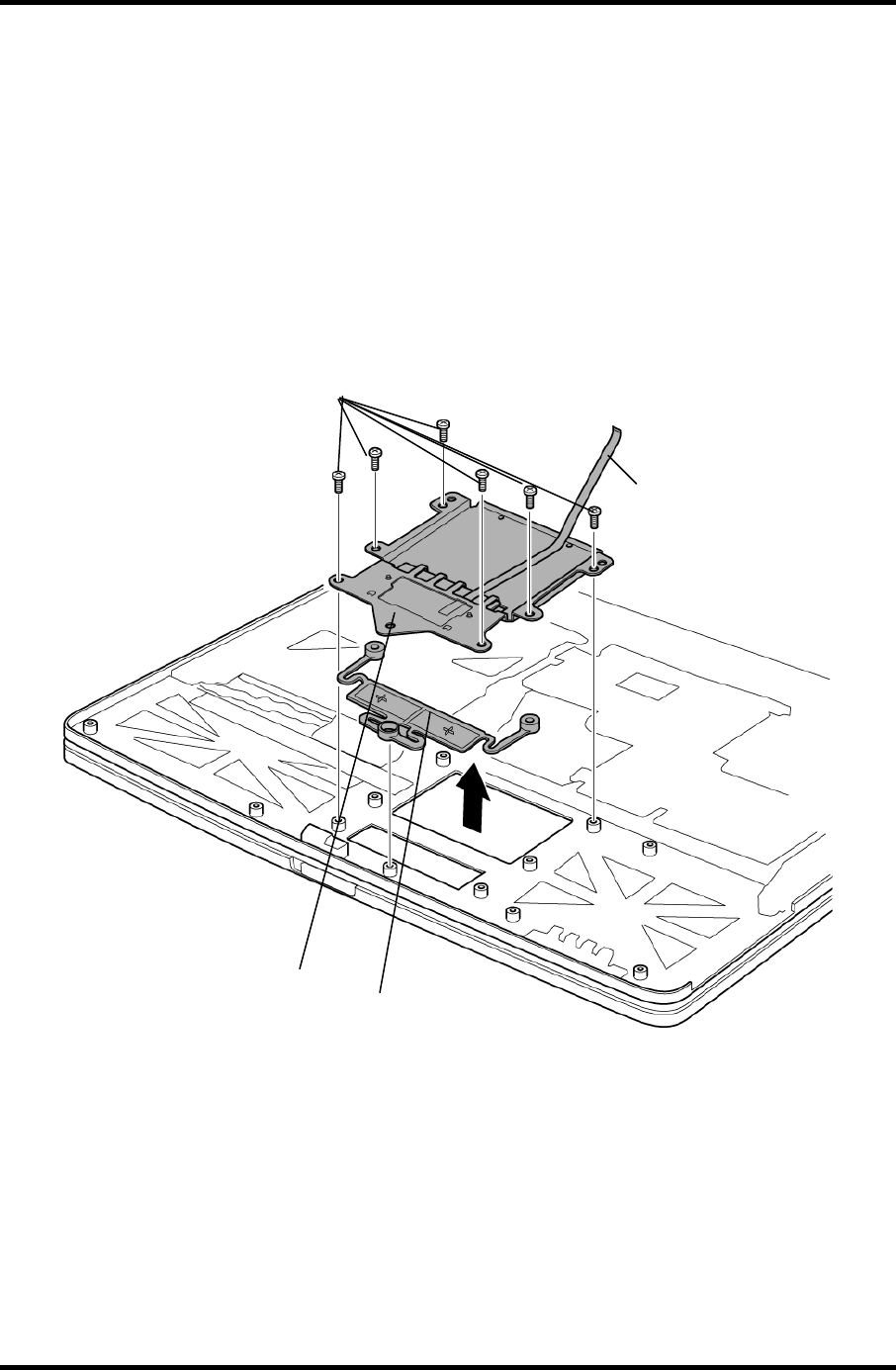

Figure 4-39 Removing Touch Pad
M2.5x4B THIN BIND
Touch Pad
Touch Pad Cable
Touch Pad Switch
