1.4 2.5-inch Hard Disk Drive 1 Hardware Overview
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 1-11
1.4 2.5-inch Hard Disk Drive
The computer has a compact, high-capacity HDD with a height of 9.5 mm. The HDD
contains a 2.5-inch magnetic disk and magnetic heads.
Figure 1-5 shows a view of the 2.5-inch HDD and Tables 1-2 and 1-3 list the dimensions and
specifications.

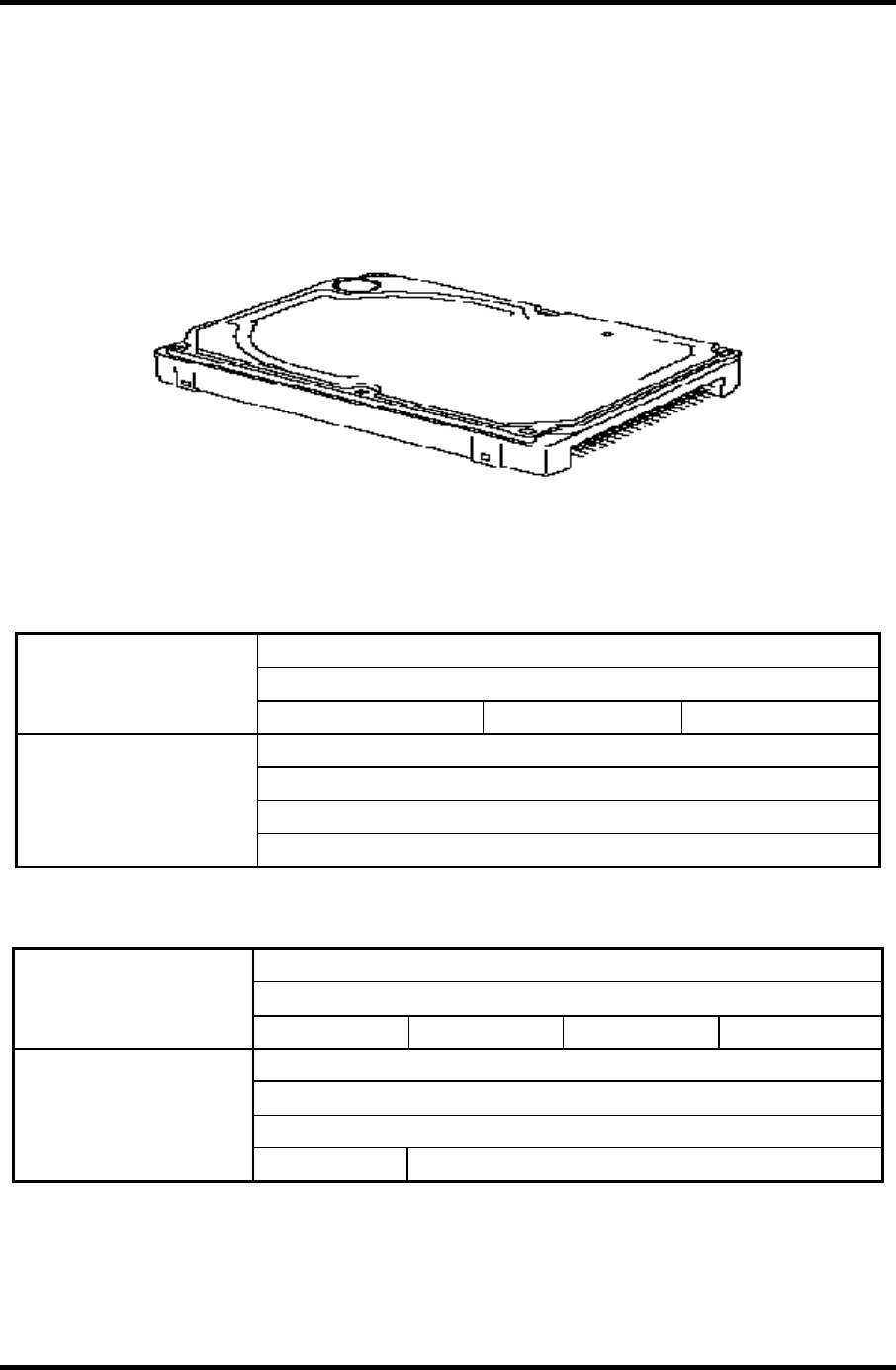

Figure 1-5 2.5-inch HDD
Table 1-2 2.5-inch HDD dimensions (1/2)
Standard
Item
TOSHIBA
HDD2193VZK01 HDD2194VZK01 HDD2191VZK01
Width (mm) 69.85
Height (mm) 9.5
Depth (mm) 100.0
Weight (g) (MAX) 95
Table 1-2 2.5-inch HDD dimensions (2/2)
Standard
HITACHI-GST
Item
G8BC0001N410 G8BC0001N610 G8BC0001N810 G8BC0001NA10
Width (mm) 69.85±0.25
Height (mm) 9.5±0.2
Depth (mm) 100.2±0.25
Weight (g) (MAX) 95 102
