C. Assembly procedure

For assembly, reverse the disassembly procedure

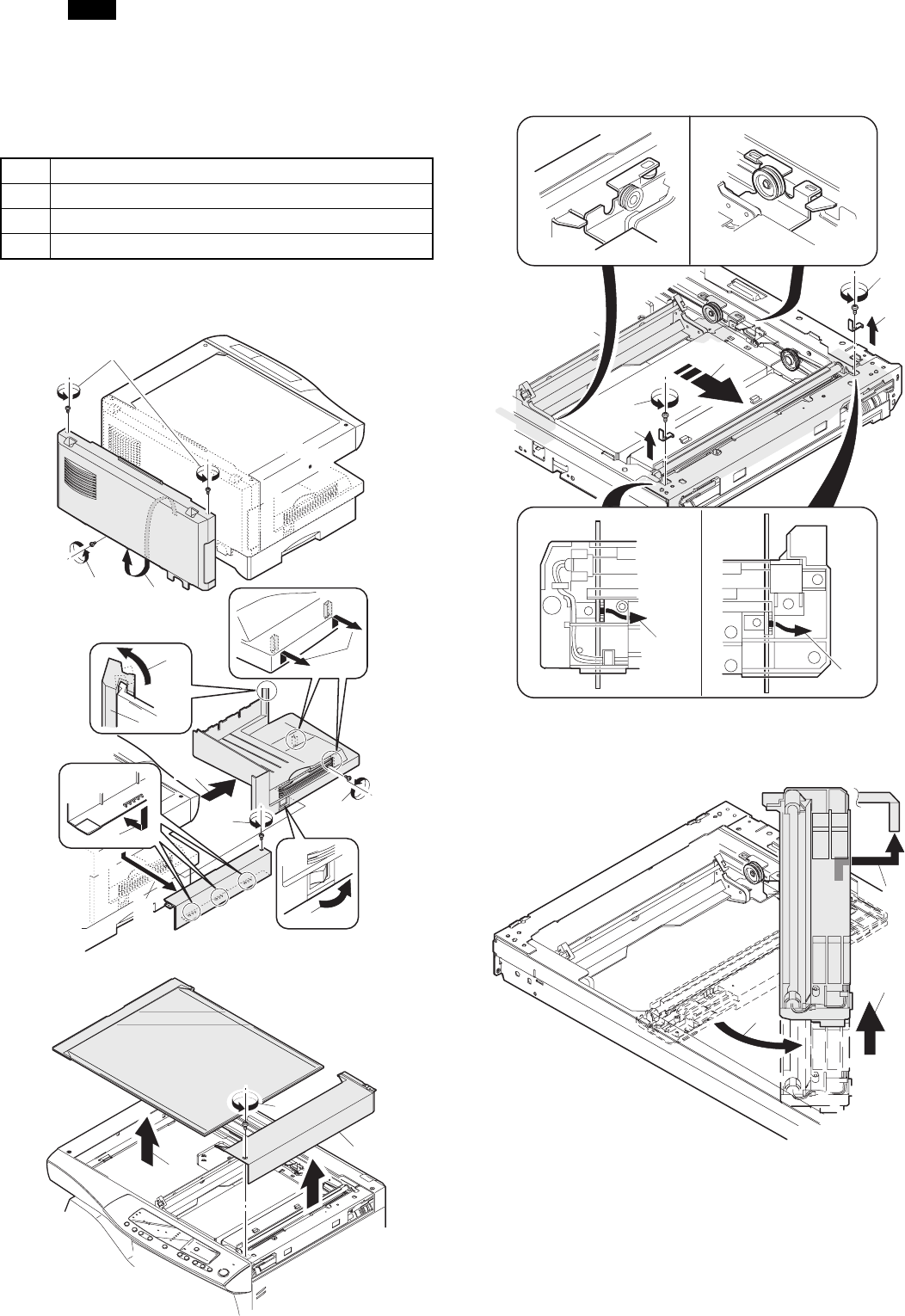

3. Optical section

A. List

NO. Part name Ref.

1 Copy lamp unit

2 Copy lamp

3 Lens unit

B. Disassembly procedure

(1) Remove the parts as shown below.

(2) Remove the screws (2pcs.), and remove the copy lamp unit from

the mirror base drive wire.

(3) Pull the copy lamp unit toward you to remove the harness.

(4) Remove the screw (4 pc) and remove the cover.

10)

Hook

AR-F152

7 – 5
