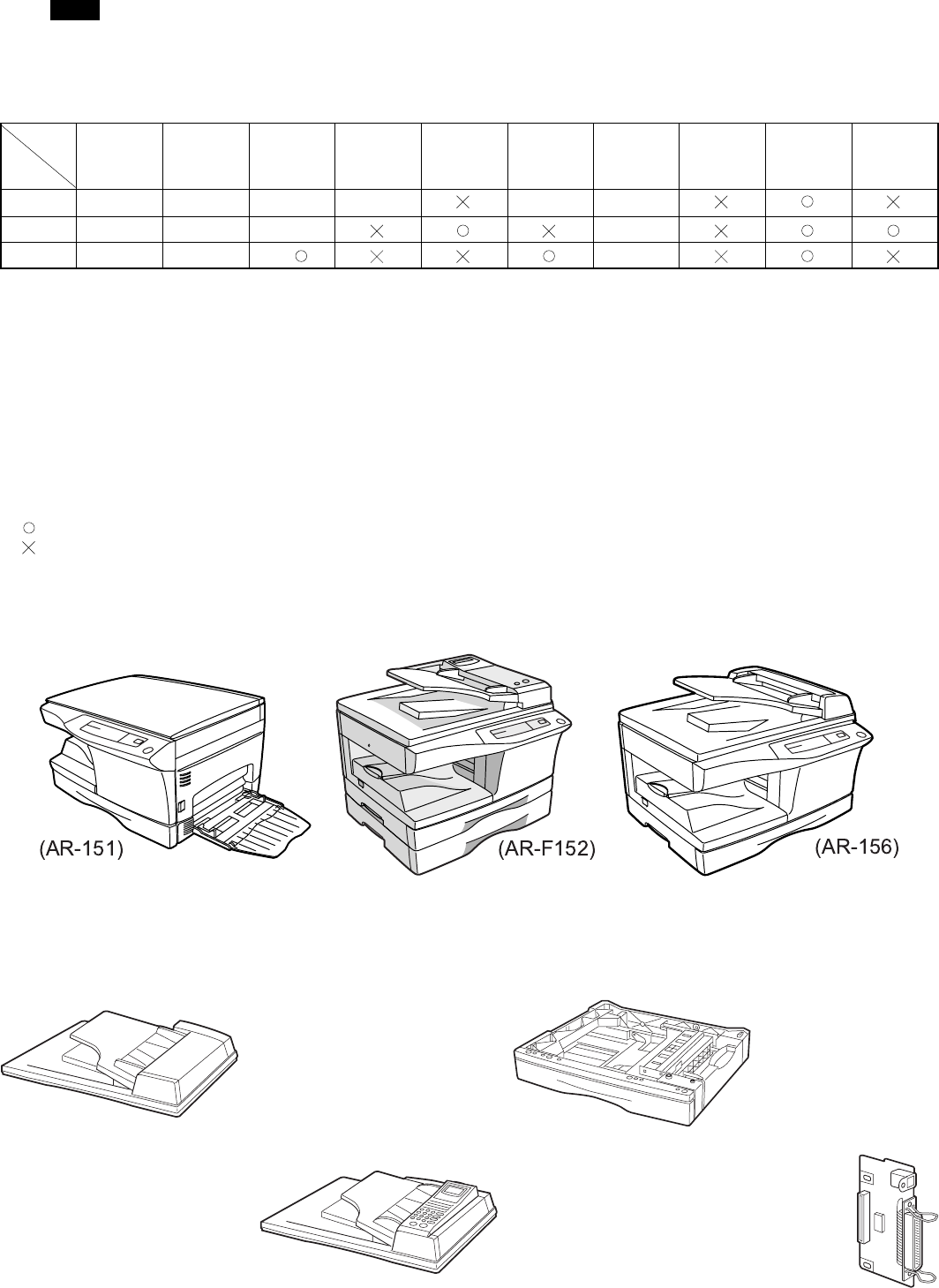

[1] GENERAL
1. AR-151/156/F152 major functions
Item
CPM SB/MB 2 tray SPF R-SPF FAX
GDI with
USB
GDI
without
USB
SOPM Duplex
Model
AR-151 15CPM MB Opt ∗1 Opt ∗1 Opt Opt
AR-156 15CPM MB Opt Opt
AR-F152 15CPM MB
∗2
Opt
Descriptions of items
CPM: Copy speed (Copies Per Minute)
SB/MB: SB = Manual feed single bypass, MB = Manual feed multi bypass
2 tray: Second cassette unit. The 1 tray unit (AR-DE9) is optionally available.
SPF: Original feed unit
R-SPF: Duplex original feed unit
FAX: FAX function. The AR-FX3 (FAX-SPF and FAX board) is optionally available.)
GDI with USB: GDI printer function with USB. The AR-PG1 (GDI + USB kit) is optionally available.
GDI without USB: GDI printer function without USB. The said model has no option of it.
SOPM: Scan One Print Many function (Many copies are made by one scan.)
Duplex: Auto duplex copy function
Descriptions of table
:
Standard provision
:
No function or no option available
∗1: Incompatible between SPF and FAX function
∗2: 1 tray option for Europe
2. System Configuration
(Options)
AR-SP3
AR-FX3
AR-DE9
AR-PG1
AR-F152
1 – 1
