Division No.
Ex production 1
Option 2
Same pack 3
∗1 The production control label is not attached to the cartridge of a
China product.

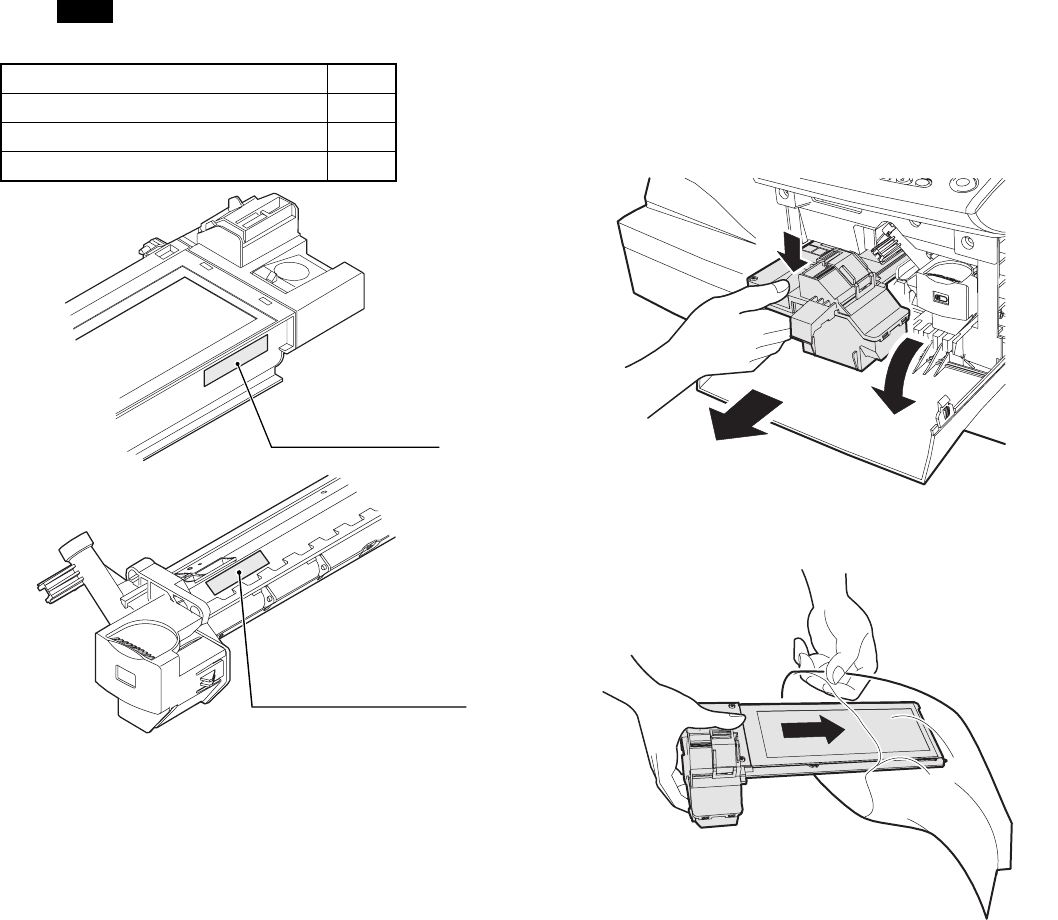

4. TD cartridge replacement
1) Open the front and side cabinets of the copier.
2) Keep holding Toner lover, and
3) Carefully pull out Toner unit from the copier.
4) Put Toner unit in a collection bag immediately after removing it from
the copier
Note: Never carry exposed Toner unit. Be sure to put it in the col-
lection bag.
Production control
label attachment position
Production control
label attachment position(*1)
1
3
2
AR-F152
3 – 3
