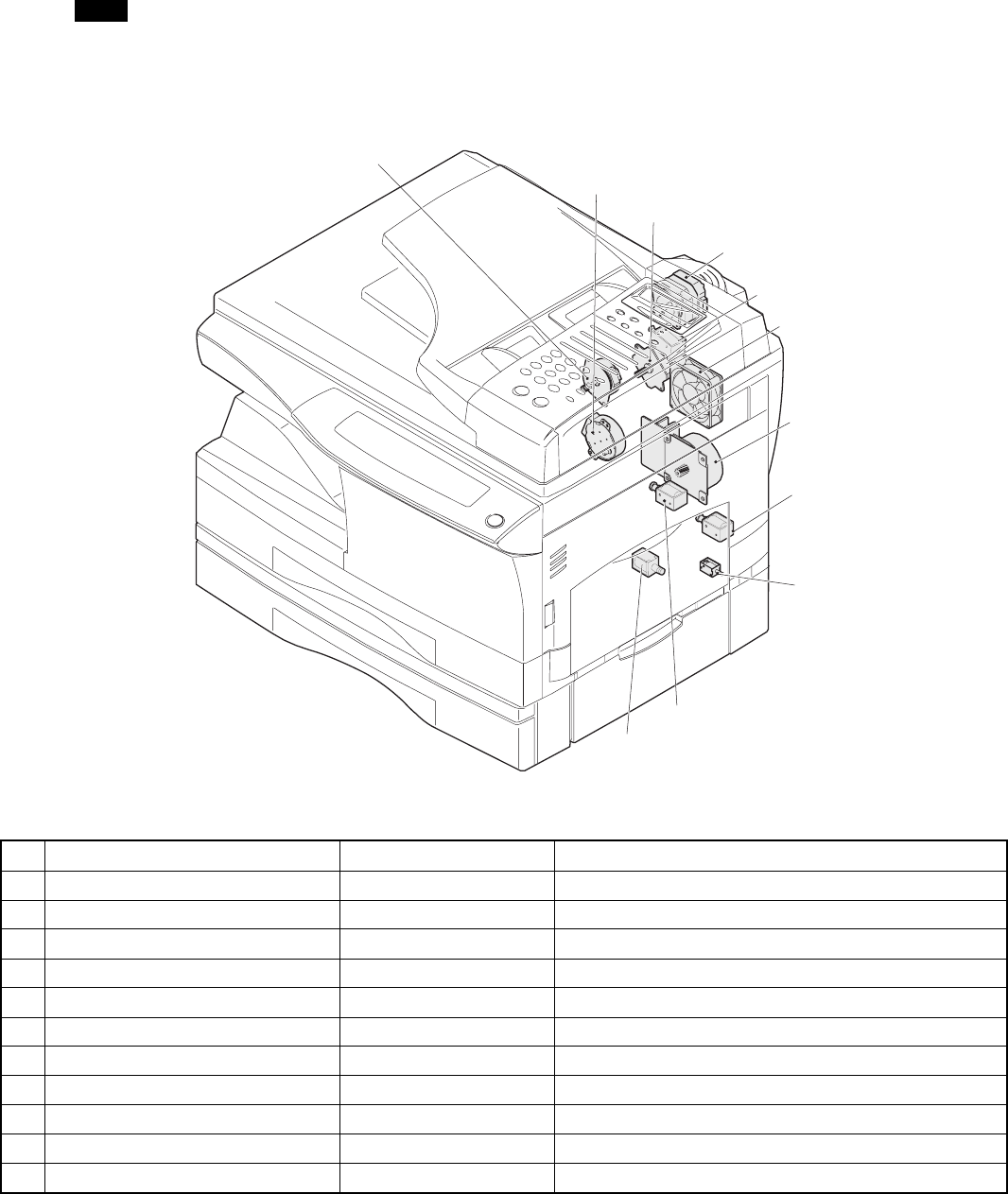

5. Motors and solenoids
No. Part name Control signal Function operation
1 Toner motor TM Supplies toner.
2 Mirror motor MRMT Drives the optical mirror base (scanner unit).
3 SPF motor SPMT Drives the single pass feeder
4 Original feed solenoid SPUS Original feed solenoid
5 Cooling fan motor VFM Cools the optical section.
6 Main motor MM Drives the copier.
7 Resist roller solenoid RRS Resist roller rotation control solenoid
8 Multi paper feed solenoid MPFS Multi manual pages feed solenoid
9 Paper feed solenoid CPFS1 Cassette paper feed solenoid 1
10 Paper feed solenoid CPFS2 Cassette paper feed solenoid 2
11 Duplex Motor DMT Drivers the duplex paper transport section
1
11
2
3
5
4
6
7
8
9
10
AR-F152
4 – 4
- DIGITAL COPIER 1
- VORSICHT 2
- ADVARSEL 2
- VARNING ! 2
- [1] GENERAL 4
- [2] SPECIFICATIONS 5
- C. Copy performance 6
- [3] CONSUMABLE PARTS 16
- 2. Environmental 17
- 4. TD cartridge replacement 18
- 1. Appearance 19
- 2. Internal 19
- 3. Operation panel 20
- 191817161514 20
- FAX STARTSTOP 21
- 5. Motors and solenoids 22
- 6. Sensors and switches 23
- 7. PWB unit 24
- 8. Cross sectional view 25
- 1. COPIER INSTALLATION 26
- 2. CAUTIONS ON HANDLING 26
- 8. LOADING COPY PAPER 28
- Paper guide (B) 29
- Paper guide (A) 29
- [6] OPERATIONAL DESCRIPTIONS 30
- 2. Scanner section 31
- 3. Laser unit 31
- 4. Fuser section 32
- A. Outline 36
- C. Operational descriptions 37
- A. Initial state 38
- B. Front copy 38
- C. Back copy 38
- Communicatinon error flag ON 39
- Response received? 40
- Command received? 42
- Auto dial sending 43
- [7] DISASSEMBLY AND ASSEMBLY 44
- C. Disassembly procedure 46
- D. Assembly procedure 46
- E. Charger wire cleaning 46
- 2. Operation panel section 47
- 3. Optical section 48
- 4. Fusing section 49
- B. Disassembly procedure 49
- PPD2 sensor 50
- Heat roller 51
- CAUTION:Attach 54
- 6. Manual paper feed section 56
- Wire treatment 57
- 7. Rear frame section 60
- 8. Power section 61
- 9. SPF section 61
- A. Sensor PWB 62
- B. Pickup solenoid 62
- C. Clutch 62
- F. SPF motor 63
- G. Paper entry sensor 63
- 10. 2nd cassette section 64
- B. Cassette detection SW 65
- C. Paper feed solenoid 65
- D. Transport roller 65
- E. Paper feed clutch 65
- F. 2nd paper feed roller 65
- B. Intermediate tray 67
- C. Upper cover 67
- D. Pickup unit 68
- F. Sensor PWB 68
- G. Pickup solenoid 68
- H. Clutch 69
- J. Transport unit removal 70
- K. Belt 1 70
- L. Belt 2 70
- M. SPF motor 70
- N. Solenoid 70
- O. Clutch 71
- P. PS roller 71
- Q. Paper entry sensor 71
- R. Transport roller1 72
- S. Paper exit roller 72
- 14. FAX, MCU PWB section 73
- (AR-F152 only) 73
- D. Remove the PWB cover FAX 74
- E. Remove the MCU PWB 74
- B. Remove the metal fixtures 74
- ROM (AR-F152 only) 77
- [8] ADJUSTMENT 78
- Set screw 79
- Scanner unit drive pulley 79
- Copy lamp unit projection 79
- Image distortion check chart 79
- Document 80
- Greater distortion 80
- Smaller distortion 80
- Copy image dimension 82
- Original dimension 82
- D. Image position adjustment 83
- B4 or 8 1/2″ × 14″ paper 84
- A4 size rear edge 84
- 2. Copy density adjustment 85
- 3. High voltage adjustment 86
- 4. Duplex adjustment 86
- Scale (D-D mode) 87
- 5. Density section 88
- 6. Communication section 89
- 1. List of simulations 90
- AE, Main cassette lamp 101
- AE lamp (Blinking) 101
- AE, TEXT lamp 101
- AE, TEXT, PHOTO lamp 101
- B. List of functions 103
- A. Software Switch List 109
- 5. TROUBLE CODES 118
- (1) Sending error 119
- (2) Reception error 119
- (1) LCD: FAX SERVICE ERROR(#) 119
- [10] USER PROGRAM 120
- [11] MAINTENANCE 121
- [12] ELECTRICAL SECTION 122
- B. MCU PWB unit 123
- FAX PWB UNIT 124
- 2. Circuit descriptions 125
- (2) ASIC (Signal table) 127
- LCD PWB 134
- NSFX200 (IC503) supplies 135
- Input Signals 135
- Output Signals 135
- Input/Output Signals 136
- (2) NS32FX164 (IC507) 136
- Input-Output Signals 137
- (4) CPU interface 138
- (5) Image memory interface 138
- (6) Others 138
- Motor control 140
- Bus control 140
- LBP module 141
- 6. LCD circuit (AR-F152 only) 142
- C. LCD panel pin arrangement 143
- [13] CIRCUIT DIAGRAM 144
- MCU 2 (INPUT SECTION) 145
- MCU 3 (OUTPUT SECTION 1) 146
- MCU 4 (OUTPUT SECTION 2) 147
- MCU 5 (ASIC SECTION) 148
- MCU 7 (CONNECTOR SECTION 2) 150
- MCU 8 (CONNECTOR SECTION 3) 151
- FAX LCD PWB (AR-F152 Only) 162
- ACTUAL WIRING DIAGRAM 1/5 164
- ACTUAL WIRING DIAGRAM 2/5 165
- ACTUAL WIRING DIAGRAM 3/5 166
- ACTUAL WIRING DIAGRAM 4/5 167
- ACTUAL WIRING DIAGRAM 5/5 168
- SHARP CORPORATION 170
