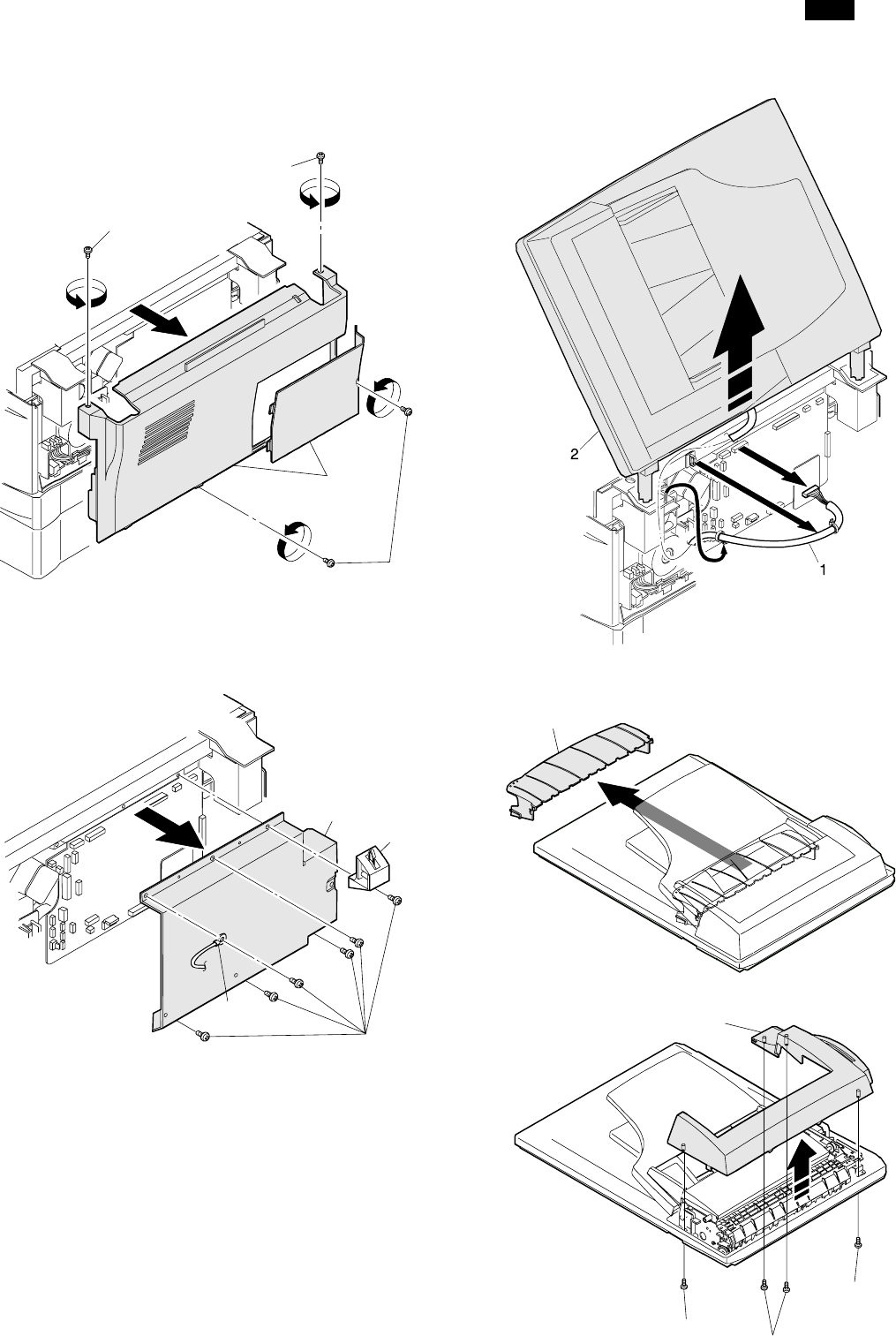

13. RSPF section (AR-156 only)
A. RSPF
(1) Remove the rear cabinet.
1) Remove four screws.
2) Remove the rear cabinet.
(2) Remove the shield plate.
1) Remove six screws.
2) Remove the open/close detection unit, and the earth wire.
3) Remove the shield plate.
(3) Remove the RSPF.
1) Remove the connector and the cable.
2) Remove the RSPF.
B. Intermediate tray
1) Remove the intermediate tray.
C. Upper cover
1) Remove four screws from the bottom of the main body.
2) Remove the upper cover.
2
1
1
1
1
2
2
3
1
1
2
1
1
AR-F152
7 – 24
