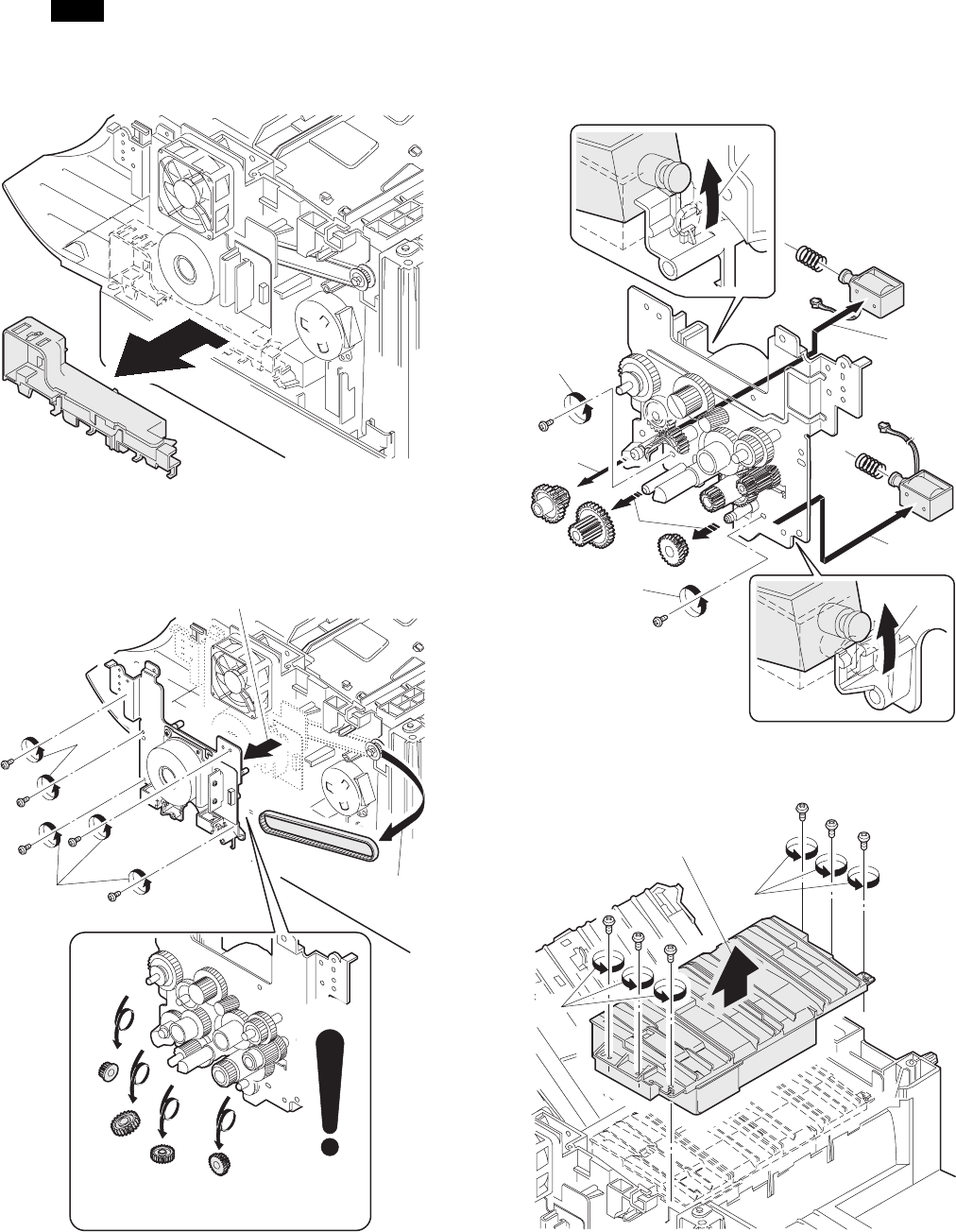

(9) Remove the harness guide.

(10) Remove five screws and remove the main drive plate and the

belt.

(11) Remove the parts as shown below, and remove the pressure

release solenoid and the paper feed solenoid.

(12) Remove six screws and remove the LSU unit.

1)

3)

2)

1)

CAUTION:Attach

the gears

securely

3)

3)

1)

1)

2)

2)

4)

4)

1)

1)

2)

AR-F152

7 – 11
