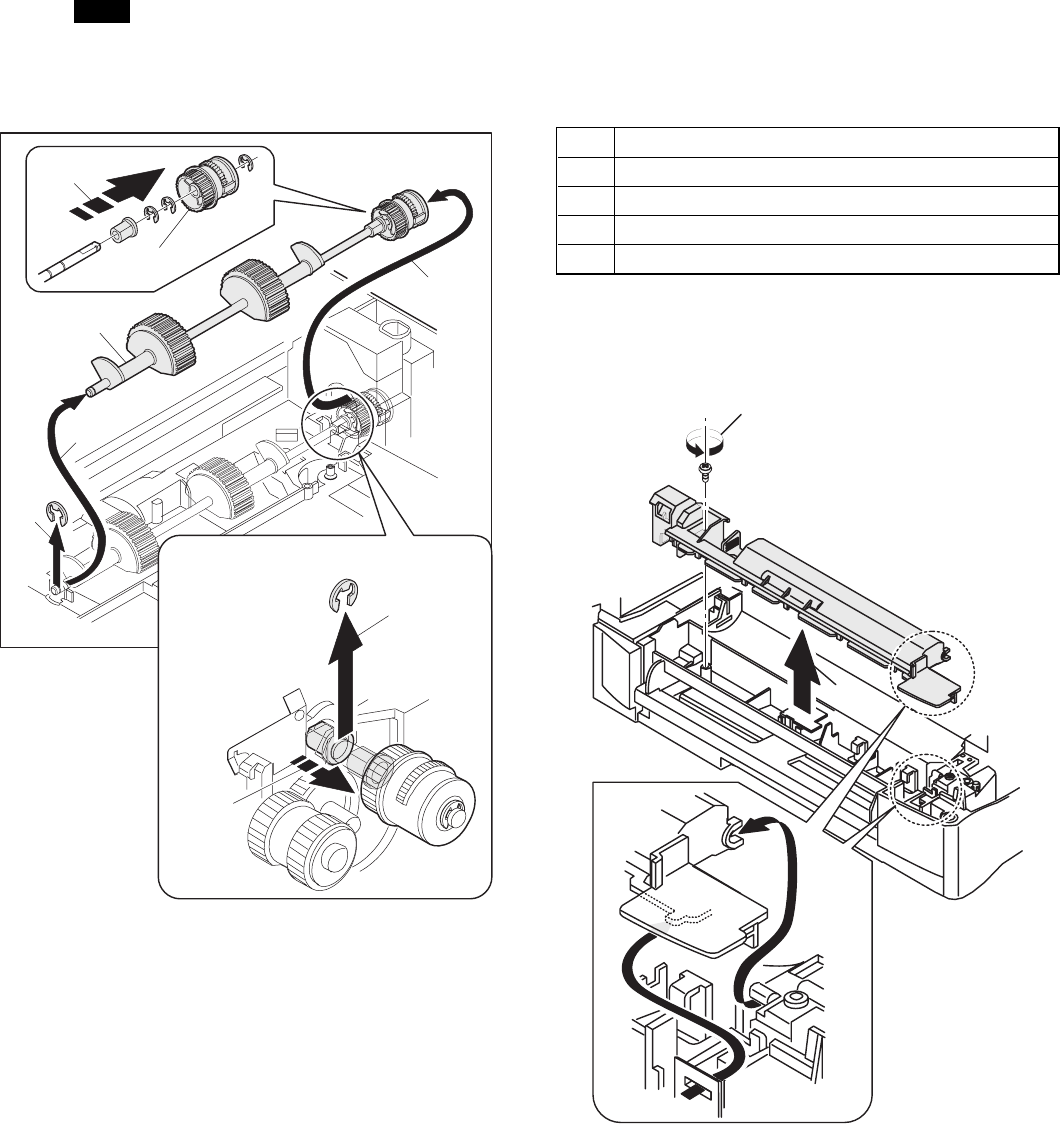

(19) Remove two E-rings and remove the paper feed roller.

(20) Remove three E-rings and remove the clutch unit.

C. Assembly procedure

For assembly, reverse the disassembly procedure.

6. Manual paper feed section

A. List

No. Part name Ref.

1 Manual transport roller

2 Cassette detection switch

3 PPD1 sensor PWB

4 Side door detection unit

B. Disassembly procedure

Single unit

(1) Remove the screw and remove the single upper cover.

Back

Front

Clutch unit

Paper feed

roller

AR-F152

7 – 13
