75
1

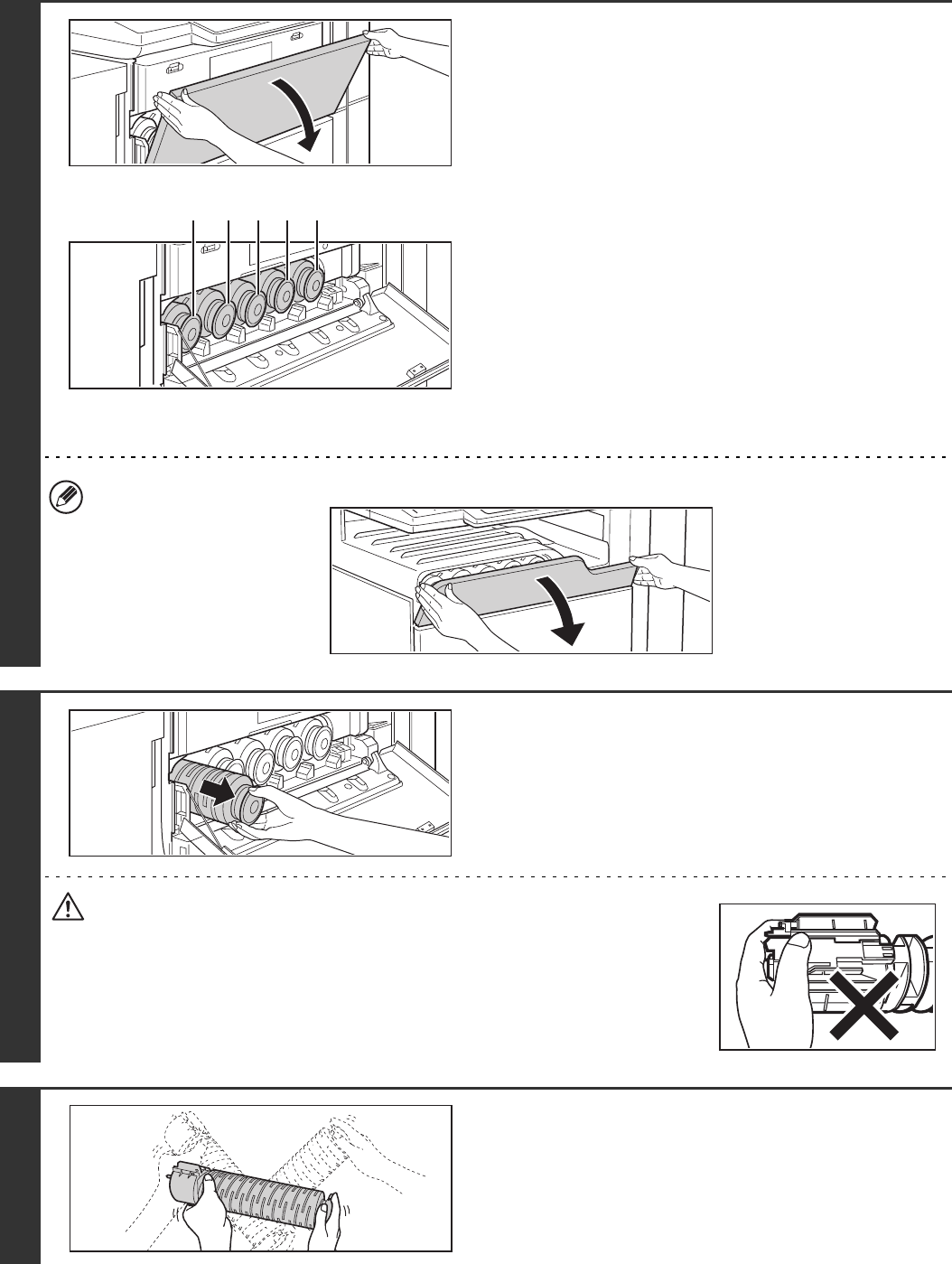

Locations of color toner cartridges
Open the front cover (upper).
If a finisher / saddle stitch finisher is not installed, open the toner cover as shown.
2
Pull the toner cartridge toward you.
Pull the cartridge slowly toward you, keeping it level.
If the cartridge is pulled out abruptly, toner may spill out.
Caution
When pulling out the toner cartridge, do not touch the toner fill hole.
3
Remove a new toner cartridge and shake
it 5 or 6 times as shown.
(B)(A) (C) (D)
(A): Yellow (B): Magenta (C): Cyan
(D): Black 1 (E): Black 2
(E)
