PART NAMES AND FUNCTIONS

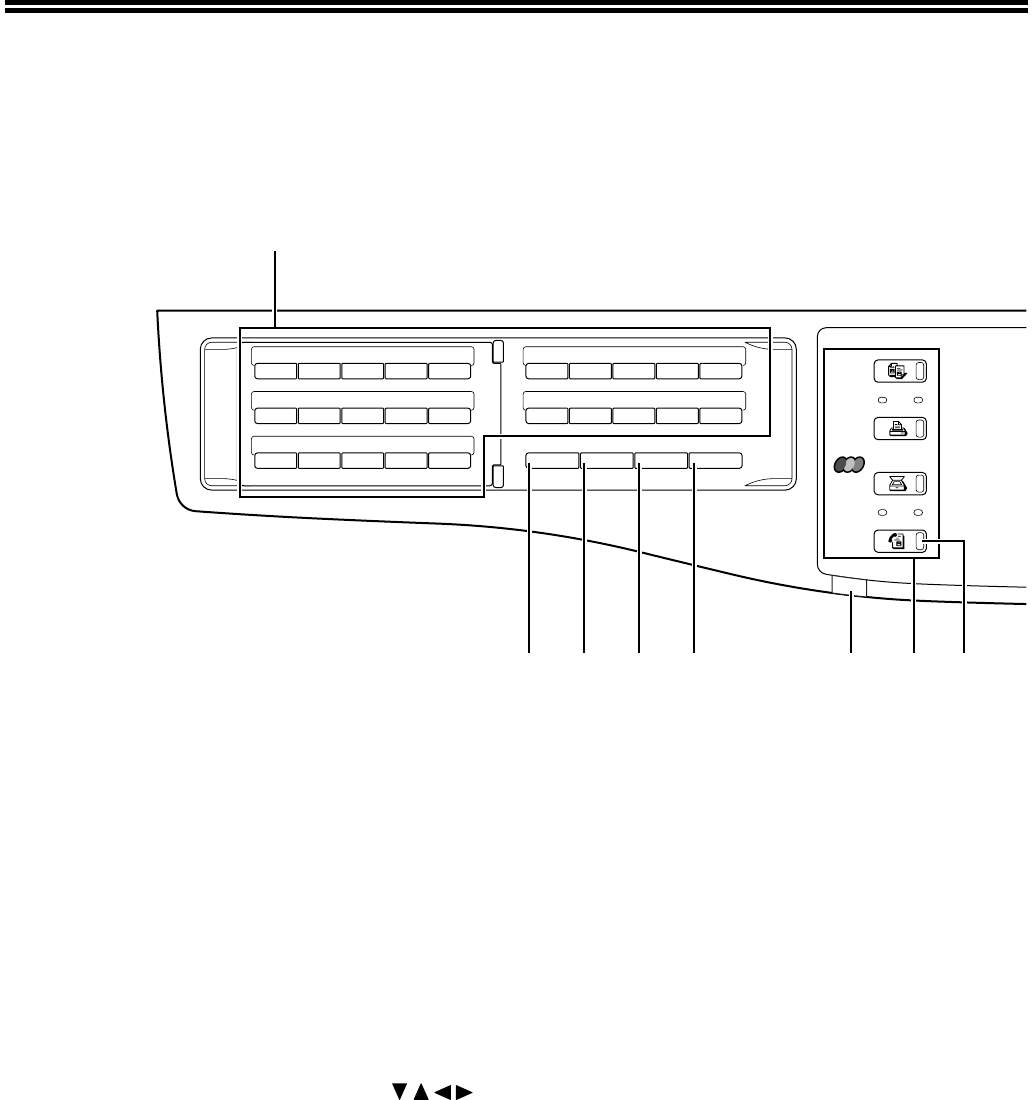

OPERATION PANEL

(1) Page pallet (page 84)

(2) Display (page 12)

This key displays the base screen and the

function setting screen.

(3) [BACK] key

In a setting or programming screen, this key is

used to move back to the previous screen.

(4) [FAX STATUS] key (page 28)

This is used to cancel a fax transmission or a

stored fax transmission.

(5) [OK] key

This key is used to enter a setting that has been

selected with the arrow or other keys ( ).

(6) Numeric keys

These are used to enter fax numbers,

sub-addresses, passcodes, and numerical

settings. (See "BOXES AND

SUB-ADDRESSES/PASSCODES REQUIRED

FOR F-CODE TRANSMISSION" on page 50.)

(7) [C] key

This is used to clear a mistake when entering fax

numbers, sub-addresses, passcodes, and

numerical settings. One digit is cleared each time

the key is pressed.

When an original is being scanned, this key can

also be used to cancel scanning.

(8) [CA] key

This is used to cancel a transmission or

programming operation. When pressed during an

operation, the operation is canceled and the display

returns to the base screen described on page 12.

This key is also used to cancel a resolution,

paper size, or special function setting that was

selected when sending a fax.

(9) [SPEAKER/SHIFT] key (pages 18, 84)

This is used to dial without lifting an extension

phone connected to the machine and to shift

between upper and lower case when entering

characters.

(10) [REDIAL/PAUSE] key (pages 18, 20)

This is used to redial the last number dialed, and

enter a pause when entering a fax number.

(11) [SPEED/SYMBOL] key (pages 18, 86)

This is used to dial by Speed dialing and to enter

a symbol when entering characters.

(12) [COMM. SETTING/SPACE/-] key (page 25)

This is used to switch between memory

transmission and direct transmission, and to

switch between automatic reception and manual

reception. It is also used to enter a space or "-"

when entering characters.

(13) LINE STATUS indicator

This blinks to alert you when a fax is received.

"FAX RECEPTION LIGHT" (page 105) in the key

operator programs can be used to set the blinking

timing to one of two patterns, or to turn blinking off.

ON LINE

DATA

LINE

DATA

SCAN
