AR-CF2 CIRCUIT DIAGRAM AND PARTS LAYOUT / 回路図と部品配置図 3 - 1

[3] CIRCUIT DIAGRAM AND PARTS LAYOUT

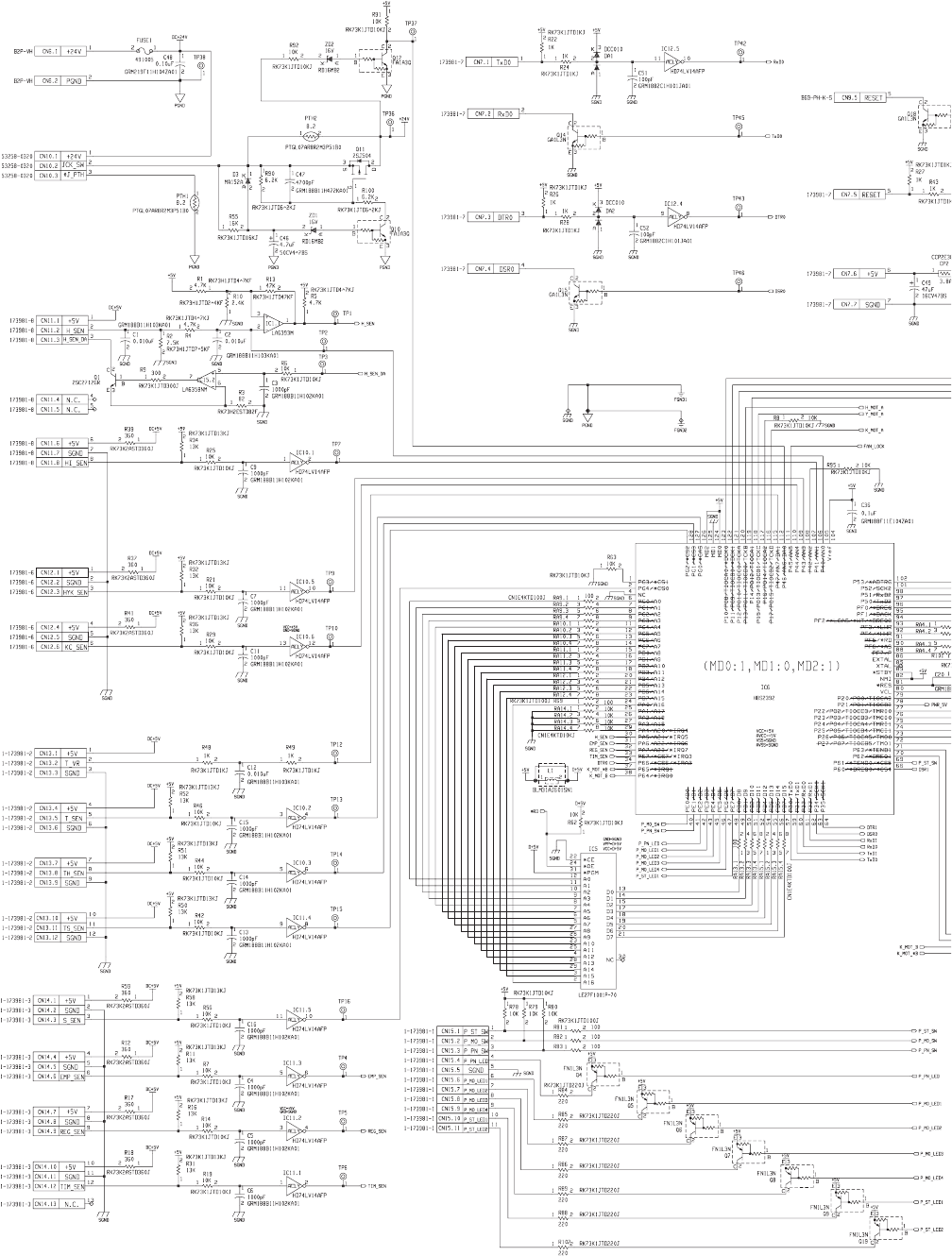

1. CIRCUIT DIAGRAM

Main Unit +24V

JAM Cover Open/

Closed SW

Main Unit +5V

Main Unit I/F

Reverse Sensor

Paper Exit Sensor

Reverse Unit Open/

Closed Sensor

Chassis Cover Open/

Closed Sensor

Document Width

Detection Volume

Tray Sensor

Sub Tray Drawn

Detection Sensor

Sub Tray Folded

Detection Sensor

Set Sensor

Empty Sensor

Registration Sensor

Timing Sensor

Mode 5

no-mounting
