AR-CF2 DISASSEMBLY AND ASSEMBLY 5 - 2

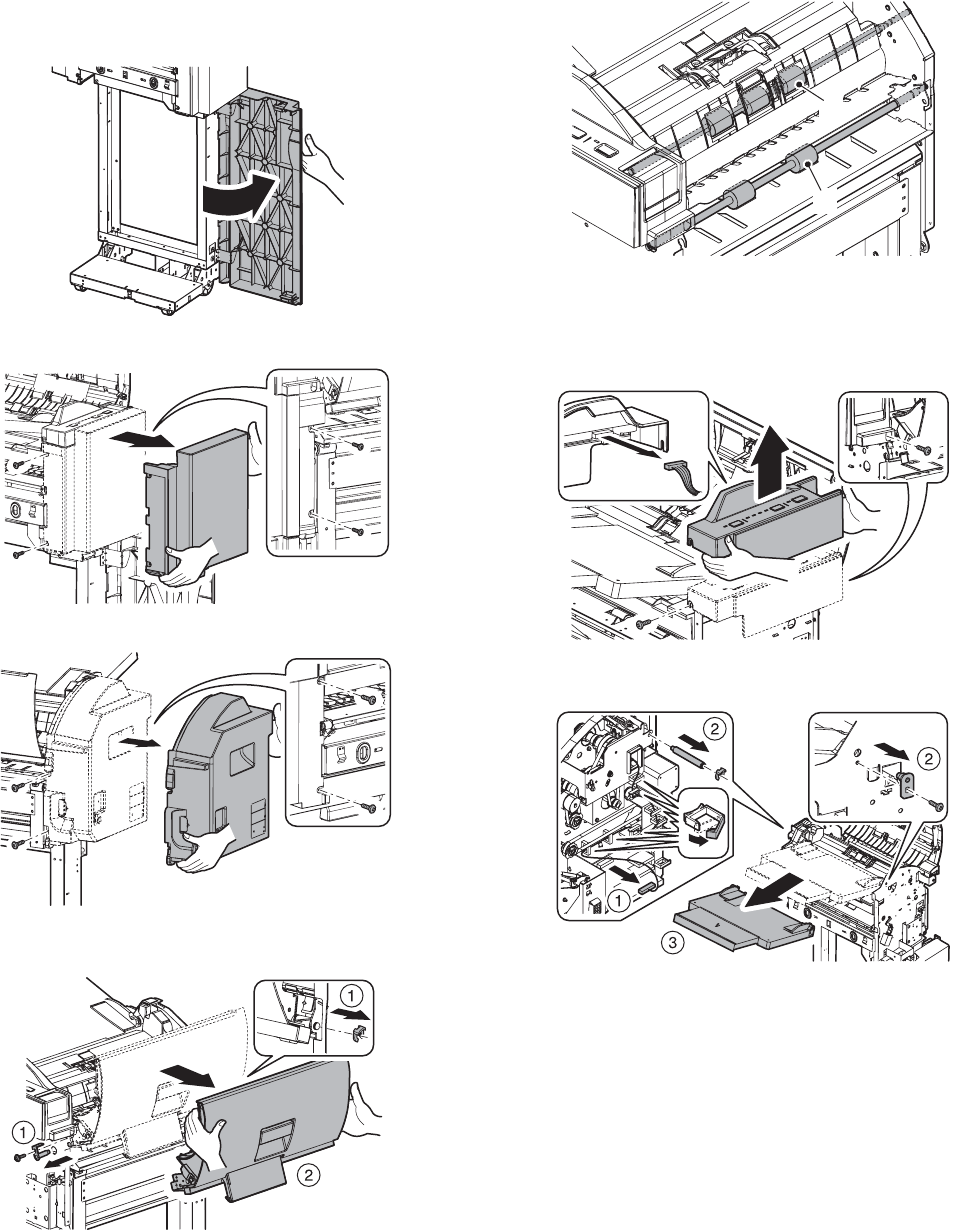

2. Paper Feed Unit

A. Horizontal Pass Roller 1 and Registration Roller

1) Open the top cover.

2) Open the mount cover.

3) Remove the front cover.

4) Remove the rear cover.

5) Remove the opening and closing cover supports and plastic E-

rings to remove the top cover.

A: Horizontal pass roller 1

B: Registration roller

B. Horizontal Pass Roller 2 and Timing Roller

1) Open the top cover.

2) Remove the front cover and rear cover.

3) Disconnect the connector to remove the operating unit.

4) Disconnect the connector, tray support and tray spring guide spin-

dle to remove the tray unit.
