AR-CF2 DISASSEMBLY AND ASSEMBLY 5 - 1

[5] DISASSEMBLY AND ASSEMBLY

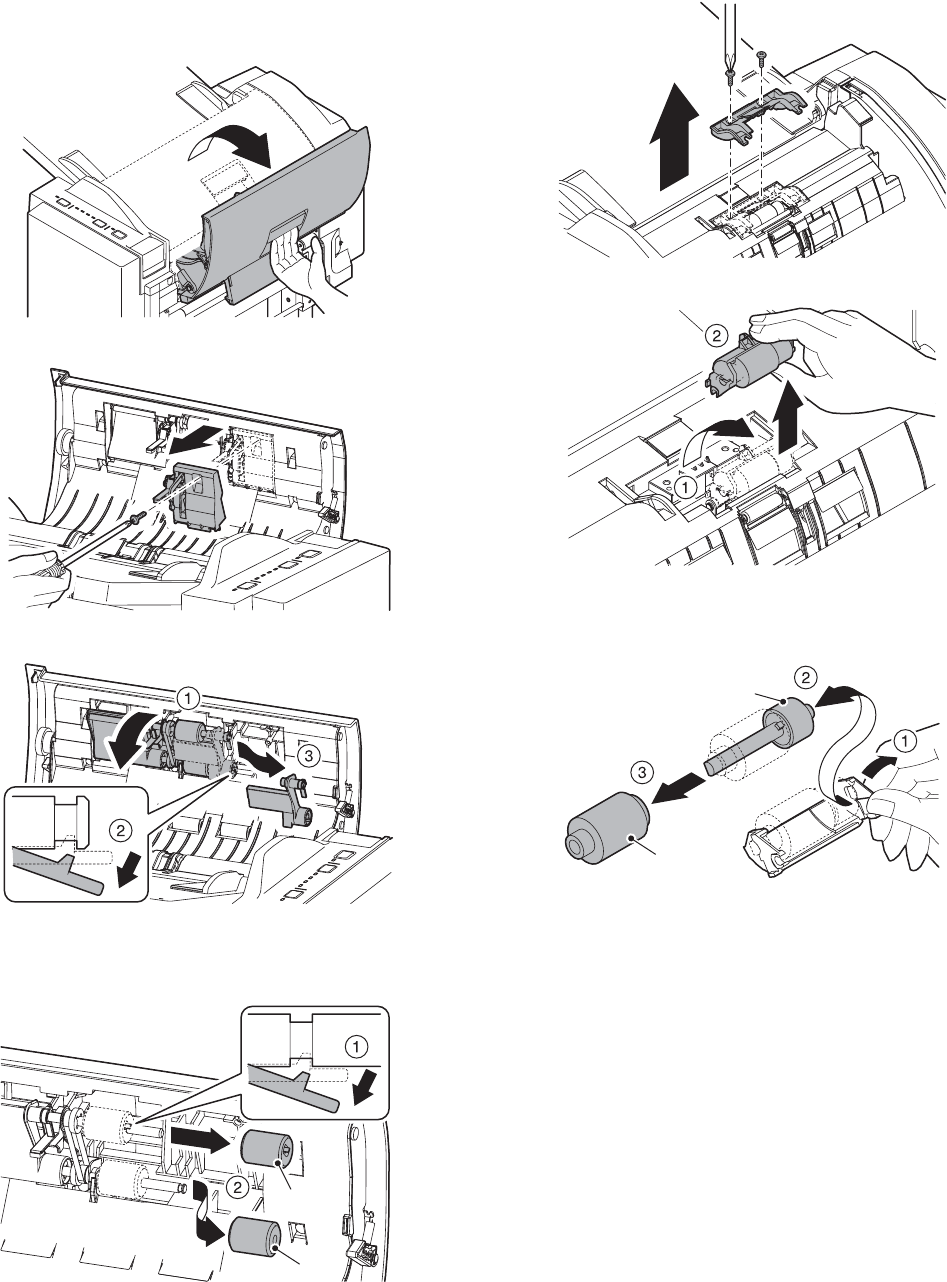

1. Paper Feed Separation Unit

A. Pickup Roller & Paper Feed Roller

1) Open the top cover

2) Remove the maintenance cover.

3) Turning the paper feed unit, remove the paper feed roller guide.

4) Remove the pickup roller and paper feed roller.

A: Pickup roller

B: Paper feed roller

B. Torque Limiter & Separation Roller

1) Open the top cover.

2) Remove the maintenance cover.

3) Turn the separation roller unit to remove.

4) Remove the torque limiter and the separation roller.

A: Torque limiter

B: Separation roller
