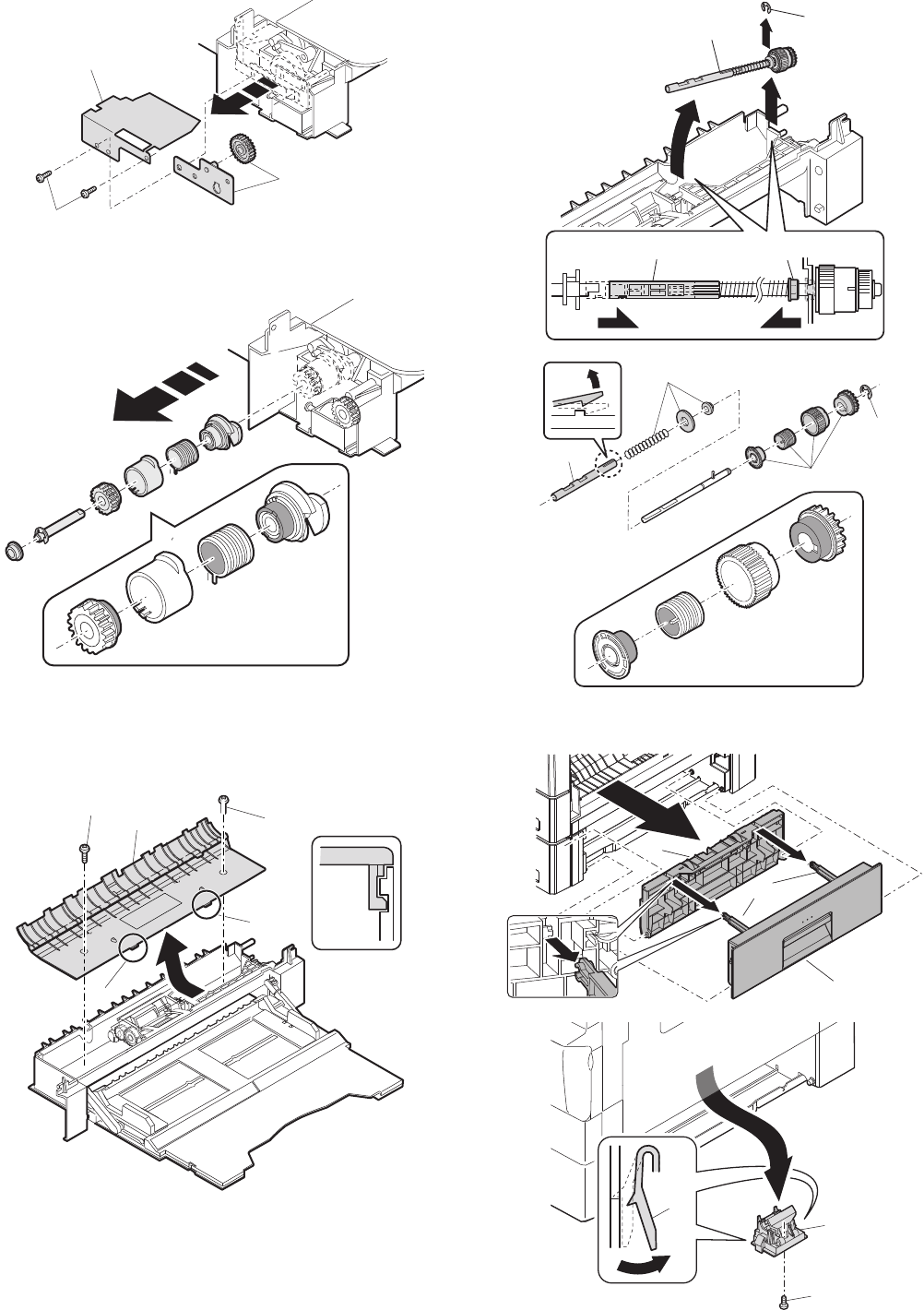

MX-M182 DISASSEMBLY AND ASSEMBLY 10-13

D. Bypass tray transport clutch

Apply grease (FG-40H) (UKOG-0004QSZZ).

E. Bypass tray paper feed clutch

Note: Push the lever at the right edge of the multi frame cover to the

right upper side and remove it.

F. Pressure plate unit

(1)

(2)

(3)

Apply grease (FG-40H)

to the gray area

(UKOG-0004QSZZ).

(1)

(1)

(2)

A

A

A

(2)

(2)

(3)

(1)

(3)

(1)

(2)

(4)

Apply grease (FG-40H)

to the gray area

(UKOG-0004QSZZ).

(2)

(1)

(3)

(2)

(1)

(3)
