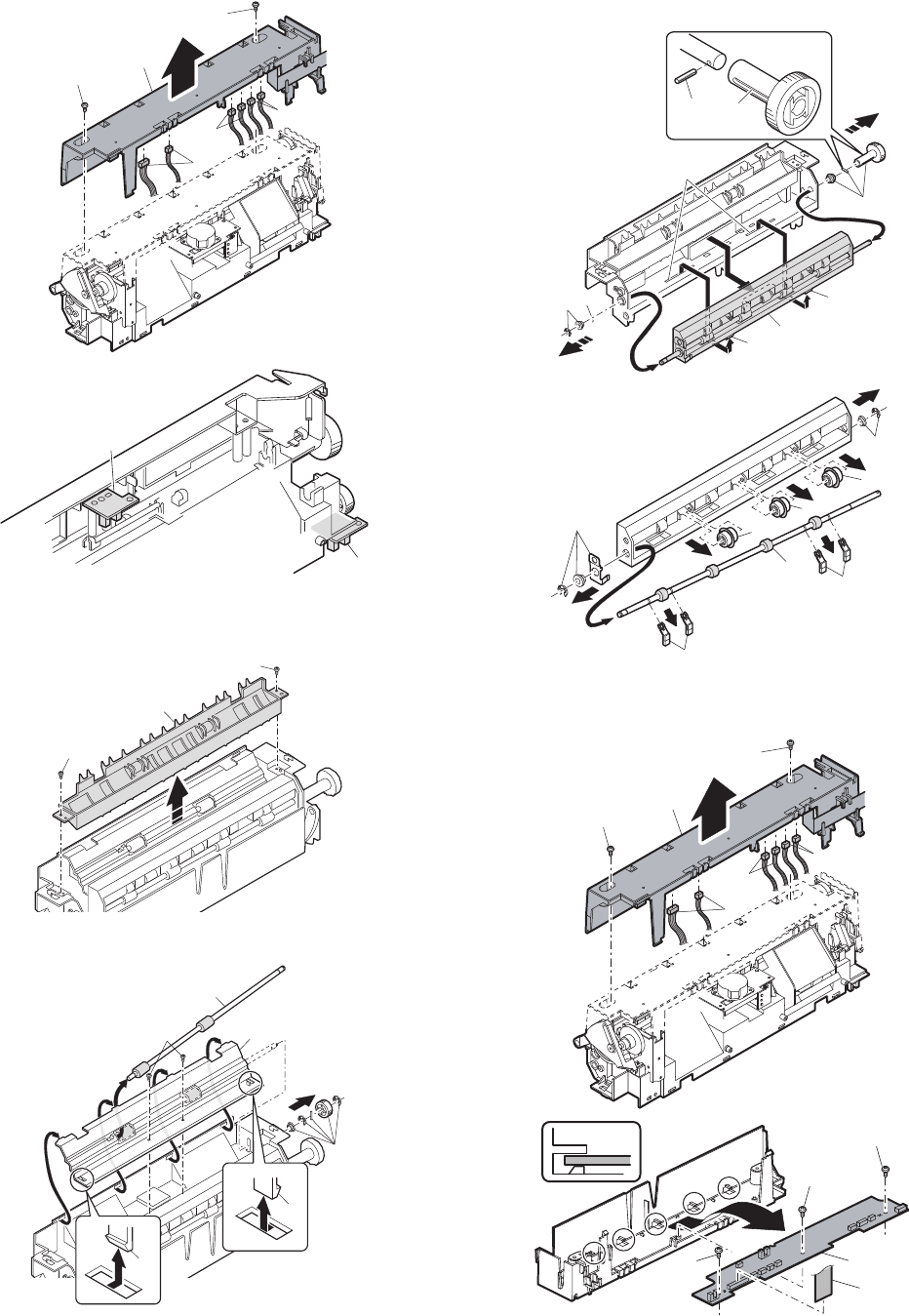

MX-M182 DISASSEMBLY AND ASSEMBLY 10-9

D. Paper exit sensor / duplex sensor

(A) Paper exit sensor

(B) Duplex sensor

E. Transport roller

F. Paper exit roller

Assembly: Insert the spring pin so that the waveform (A) of the spring

pin faces in the longitudinal direction of the paper exit

drive gear long hole (B).



Be sure to insert two ribs (C) into the groove (D).

G. Paper exit interface PWB

(3)

(1)

(2)

(1)

(A)

(B)

(1)

(2)

(1)

(2)

(3)

(4)

(5)

(3)

(1)

(2)

(A)

(B)

(D)

(C)

(1)

(2)

(3)

(4)

(3)

(1)

(2)

(1)

(2)

(1)

(3)

(1)
