1-24 Connecting to the Network
Sharp AR-C360P EFI Configuration Guide - 24
Connecting network cable to the Fiery
In this section, the back panel of the printer is illustrated, followed
by information for connecting to the Ethernet port.

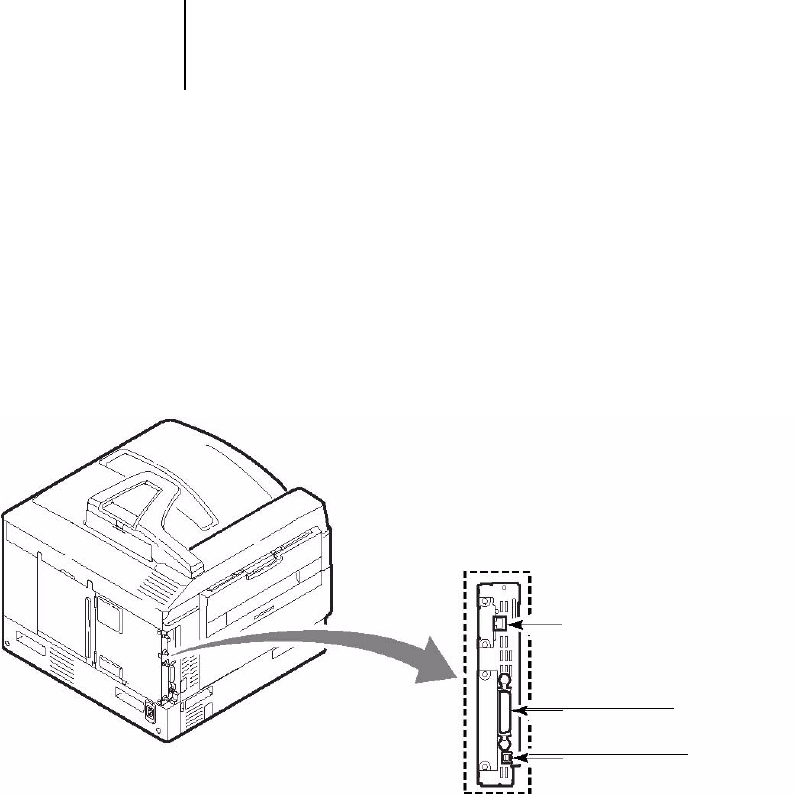

Side view of the printer
Ethernet connection
For Ethernet connections, the Fiery supports cabling, defined as
Category 5 for use with 100BaseT; or as Category 3, Category 4,
or Category 5 for use with 10BaseT. The cable uses an 8-pin RJ-45
connector that plugs into the RJ-45 socket on the Sharp
AR-C360P.
Note:The 100BaseT type supported by the Fiery is 100BaseTX,
also known as Fast Ethernet. If an Ethernet hub is used, it must
be a 100BaseTX hub. The term “100BaseT” is used to refer to
100BaseTX.
RJ-45 Ethernet
(10/100Base T)
Remove protective
cover before connecting
cable
Parallel
Port
USB
Port
