4-10
Copying Functions
4-in-1 Mode
For copying four originals onto a single sheet. This mode can be used with Duplex mode to copy eight originals onto
one sheet.

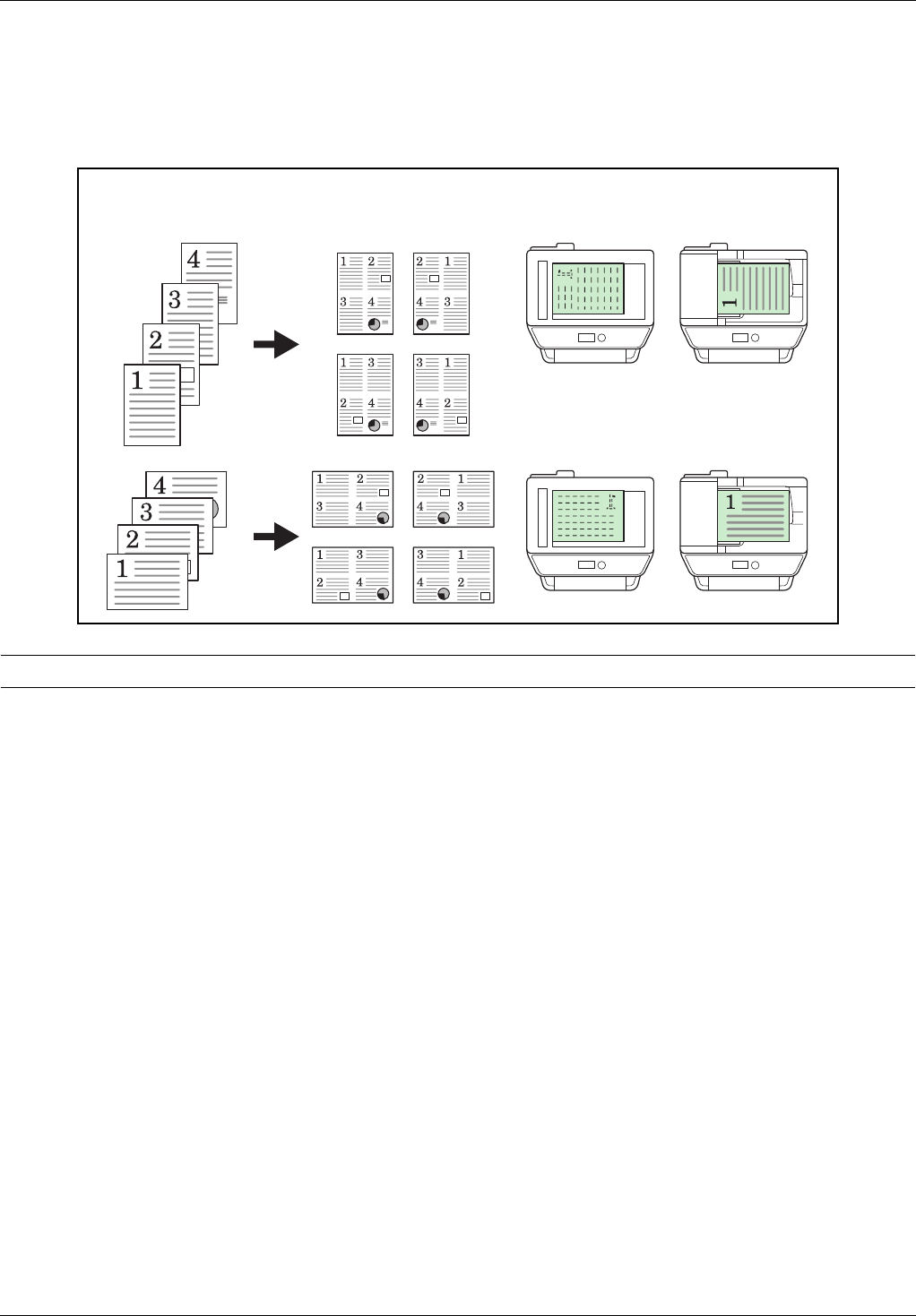

The following 4-in-1 options and output orientations are available.
NOTE: When placing the original on the platen, be sure to copy the originals in page order.
Original
Document processorPlaten
Orientation of OriginalCopy
