Maintenance

135

9. Maintenance

Cleaning the print rollers

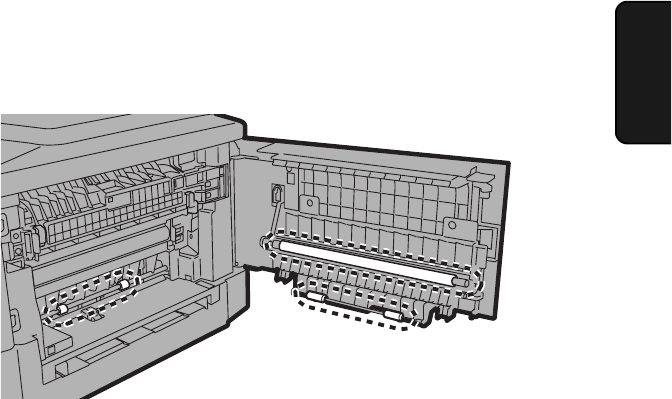

Clean the print rollers frequently to prevent smudges or other dirt from

appearing on your output. To clean the rollers, press the side cover release to

open the side cover, and then clean the rollers indicated below with a clean

cloth.

Cleaning the housing

Wipe the external parts and surface of the machine with a dry cloth.

Caution!

♦ Do not use benzene or thinner. These solvents may damage or discolor the

machine.
