Scanning From a TWAIN Application

112

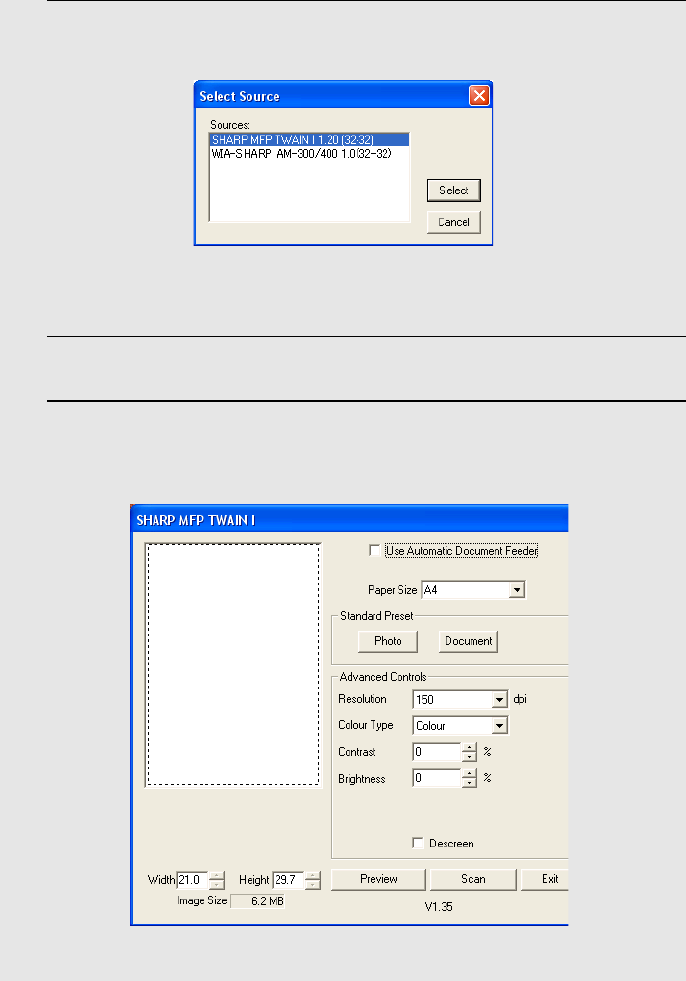

4 In the dialog box that appears, select “SHARP MFP TWAIN I” and click

the Select button.

Note: The selection WIA-SHARP AM-400 is for WIA applications and is

explained in the following section.

5 Click the File menu and select “Acquire Image”.

6 The TWAIN scanner driver window will appear. Select settings as

desired (see the next page) and then click the Scan button to begin

scanning.
