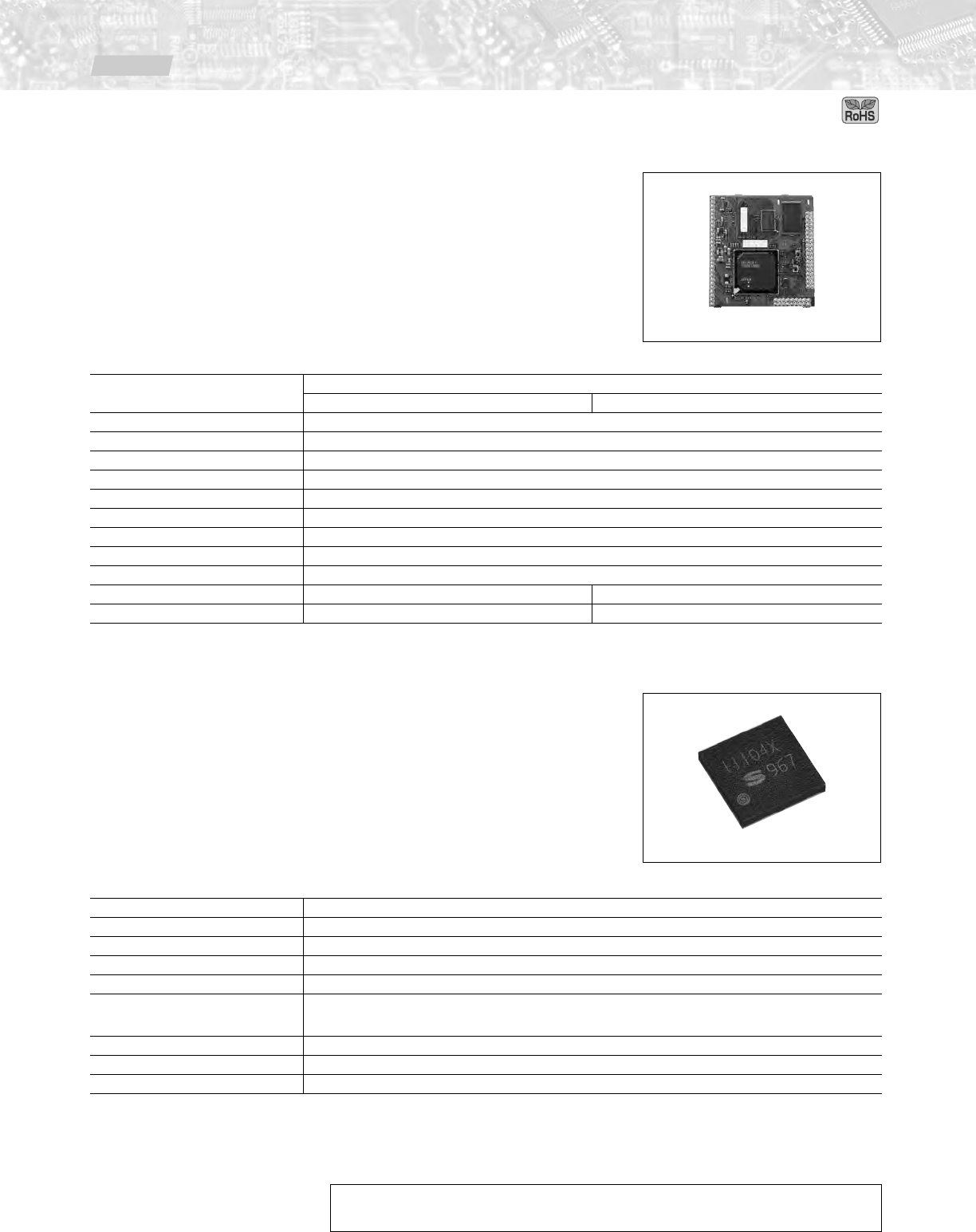

MPEG MODULE WITH VIDEO RECORDING FUNCTION /
ONE-SEG TUNER MODULE
RF
■ MPEG Module with Video Recording Function
◆ Features
(1) Comes with built-in USB interface for recording.
Capable of recording a counter program if a double tuner is installed
on the device as well.
(2) Fully compliant with ARIB standard.
Compatible with interactive data broadcasting.
◆ Standard Specifications
* Switchable between S-Video (Y/C) and component (SD or HD).
■ One-Seg Tuner Module
◆ Features
(1) High sensitivity: -100 dBm (13 seg, QPSK CR: 2/3)
(2) Compact and thin design: 5.4 × 5.4 × 1.0 mm
(3) Low power consumption: 41 mW (with software power control)
(4) Output interface: TS serial output
◆ Standard Specifications
*1 I
2
C-bus is a trademark of Philips Corporation.
Type
For digital terrestrial/BS/CS
Double type Single type
Model No. DU6R4JZxxxx
CATV (pass-through)
Video output / Audio output Component (Full HD)* / Analog stereo (L/R)
B-CAS Built-in control software
EPG Built-in EPG
ES (Engineering service)
Firm ware upgrades
Supply voltage (V) 5/3.3/1.8/1.2/1.05
Power consumption (W) 2.9
Outline dimensions (mm) 65 (W) × 80 (D) × 7 (H) 65 (W) × 70 (D) × 7 (H)
Recommended front-end VA4M6JC2103 VA4M5JC2116
Destination Japan
Model No. VA3A5JZ967
Input frequency (MHz) 470 to 770 (UHF: 13 to 62)
Input signal level (dBm) –100 (13 seg, QPSK CR: 2/3)
Outline dimensions (mm) 5.4 (W) × 5.4 (D) × 1.0 (H)
Supply voltage (V DC)
1.2 (RF)
1.2 (OFDM Core)
1.62 to 3.6 (I/O)
Power consumption (mW) 41 (TYP.)
Operating temperature (degree C) –20 to 65
Control I/F I
2
C-bus*
1
DU6R4JZxxxx
VA3A5JZ967
Notice
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment
using any SHARP devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets
before using any SHARP device.
