5 Injector System

www.turnerbiosystems.com 33

1. Power off the Modulus™ Microplate Reader.

2. Place the Injector System Console on top of the instrument with

the four rubber feet firmly inside of the indentation and level.

3. Remove the black rectangular plate located behind the touch

screen by loosening the two screws with the provided Allen

wrench.

4. Drop the injector tip end(s) of the outlet tubing assembly

through the opening of the instrument as shown.

5. The black plate connected to the injector tip should be oriented

so that the screw holes are aligned with the angle found on the

instrument. Tighten the two black screws with the provided

Allen wrench.

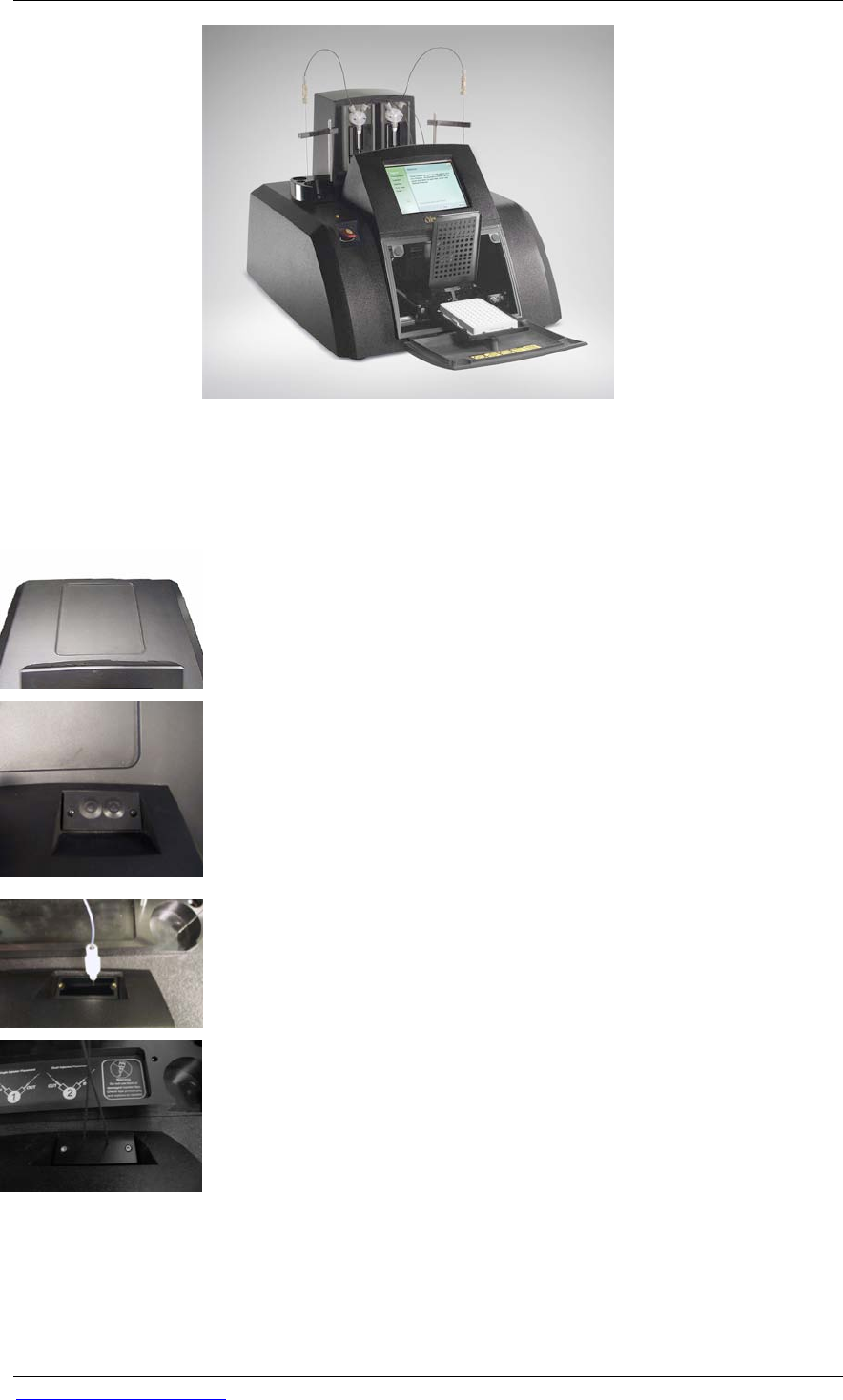

Figure 5-2

: A Complete Injector System on Top of a Modulus

Microplate Reader
