Printing Lists
123
9. Printing
Lists
COM.E-0 to COM.E-7 - A telephone line error prevented the
transaction. See Line Error in Chapter 11.
CANCEL - Transmission was cancelled because the STOP key
was pressed, no document was in the feeder, or the other
machine requested transmission using a function which your fax
does not have. If you were attempting to fax, make sure a
document is in the feeder. If you were receiving, contact the
faxing party to see how they are trying to send to you.

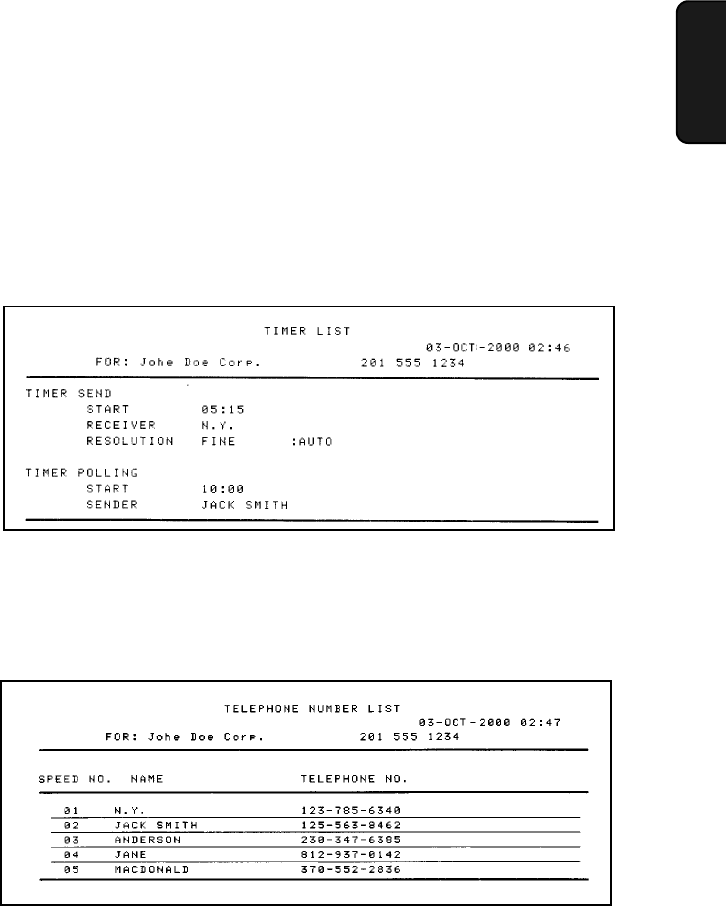

Timer List
This list shows the timer operations which are currently set.
Telephone Number List
This list shows the fax and voice numbers which have been stored for
automatic dialling.
