Step 6

BO17

● Parts Needed For ●

Corner/Front Splice

Trim

●●

●●

● 9670 Corner Trim (four)

●●

●●

● 9669 Front Splice Trim (two)

17

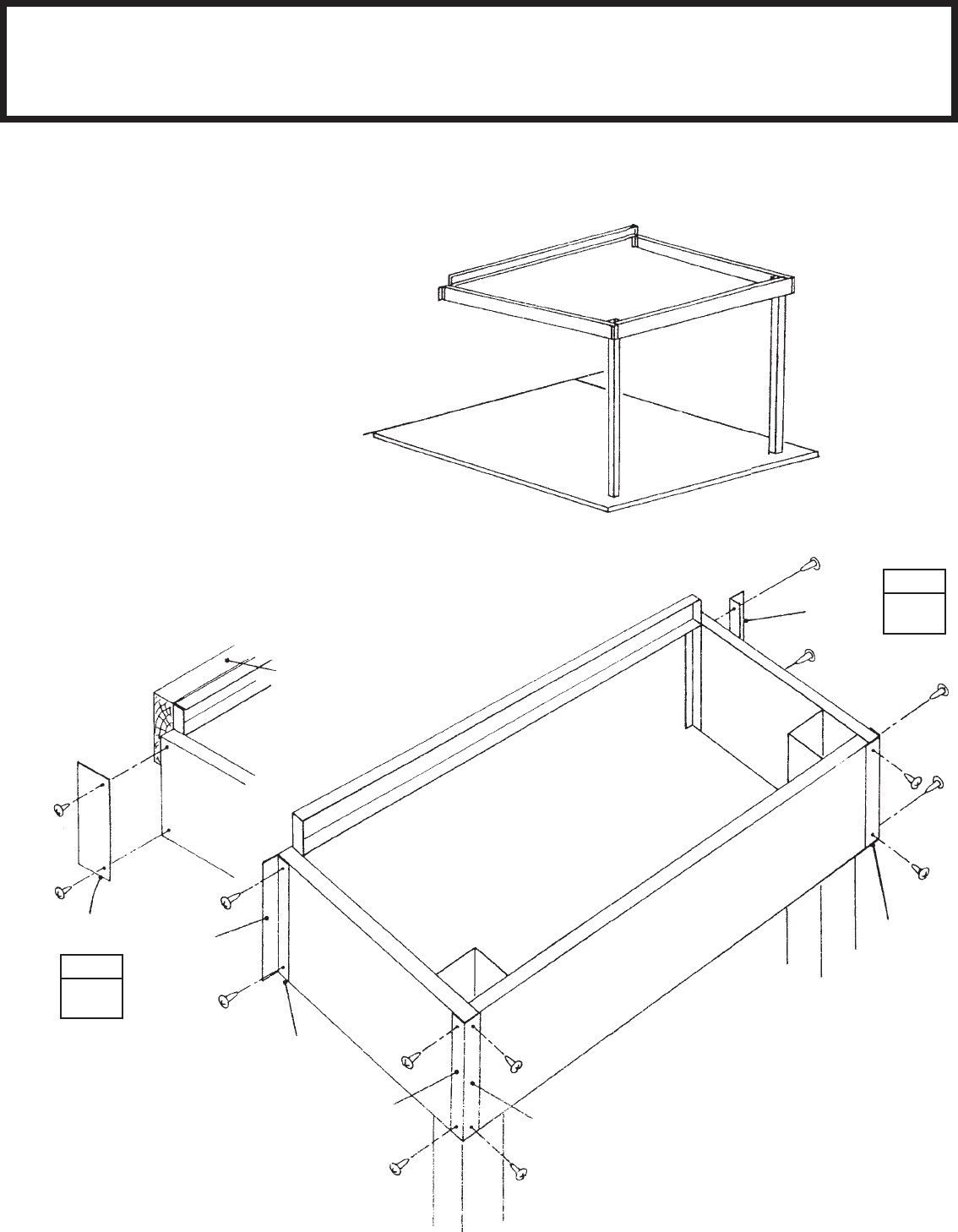

1 If a special mounting board was

used, use front splice trim pieces to

cover ends of board, instead of cor-

ner trim. Fasten using two #10

screws.

2 Position corner trim to inside

corners with short flange to facia and

fasten with two #10Ax3/8" (10 mm)

screws. Position corner trim to out-

side corners with long flange on the

front facia, and fasten with four #10

screws.

Repeat procedure on opposite end

of unit.

Mounting Board

9669

9670

Short Flange

9670

Long Flange

9670

9670

STEP

2

STEP

1
