13
REPLACING SUPPLIES AND MAINTENANCE
5

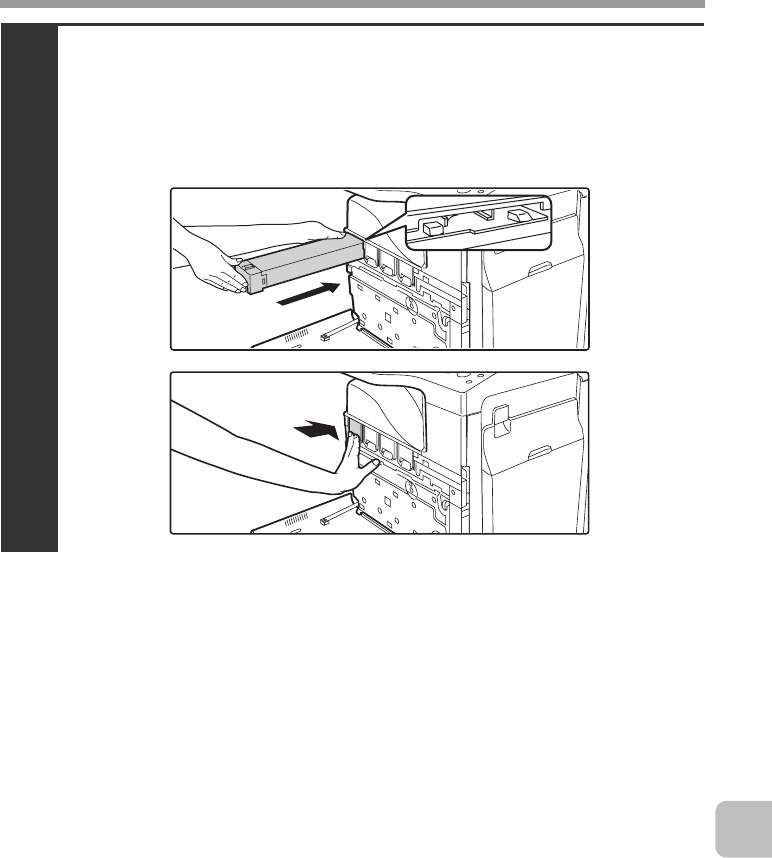

Insert the new toner cartridge horizontally and
push it firmly in.
The shape of the toner cartridge varies by color. Insert in the same location as
the toner cartridge that was removed.
mxc401_us_saf.book 13 ページ ２００８年１０月１５日 水曜日 午前１１時５２分
