Installation TDB3108, WF3208

Bradley • 215-1187 Rev. P; ECN 13-00-001 4/30/2013 5

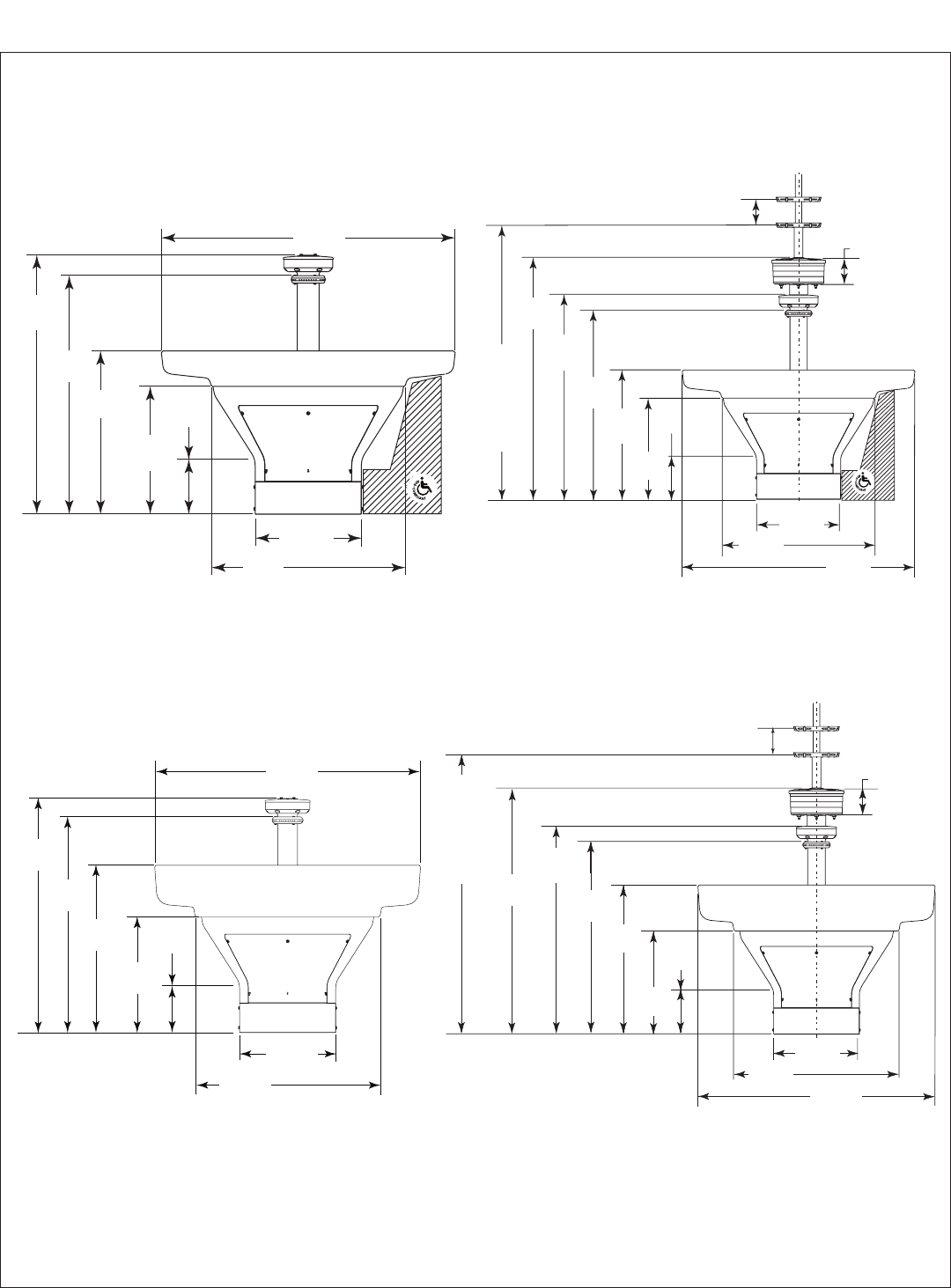

Circular Washfountain Dimensions (Juvenile Height)

Model TDB3108

54" Circular -

Juvenile Height

Optional equipment may not comply with all

ADA or TAS dimensional guidelines

Model TDB3108

54" Circular - Juvenile Height with Optional Accessories

(mm)

Adjust to Towel Dispenser

Mounting Holes

(152)

59-1/8"

(1502) w/

Soap

50-5/8"

(1286)

w/o Soap

51-1/4"

(1303)

42-5/8"

(1033)

39-1/8"

(994)

30"

(762)

23-1/2"

(597)

19-1/2"

(495)

35-1/2"

(902)

54"

(1372)

10"

(254)

Model WF3208 - 54" Circular

54"

(1372)

47-1/4"

(1200)

43-3/4"

(1111)

34"

(864)

23-1/2"

(597)

10"

(254)

37-1/2"

(953)

19-1/2"

(495)

Model WF3208 is not ADA compliant.

Adjust to Towel Dispenser

Mounting Holes

(152)

63-5/8"

(1616) w/

Soap

55-1/8"

(1400)

w/o Soap

55-3/4"

(1416)

47-1/4"

(1200)

43-3/4"

(1111)

34"

(864)

23-1/2"

(597)

19-1/2"

(495)

37-1/2"

(953)

54"

(1372)

10"

(254)

Circular Washfountain Dimensions

(mm)

54"

(1372)

19-1/2"

(495)

35-1/2"

(902)

10"

(254)

30"

(762)

23-1/2"

(597)

42-5/8"

(1083)

39-1/8"

(994)
