Installation TDB3108, WF3208

Bradley • 215-1187 Rev. P; ECN 13-00-001 4/30/2013 13

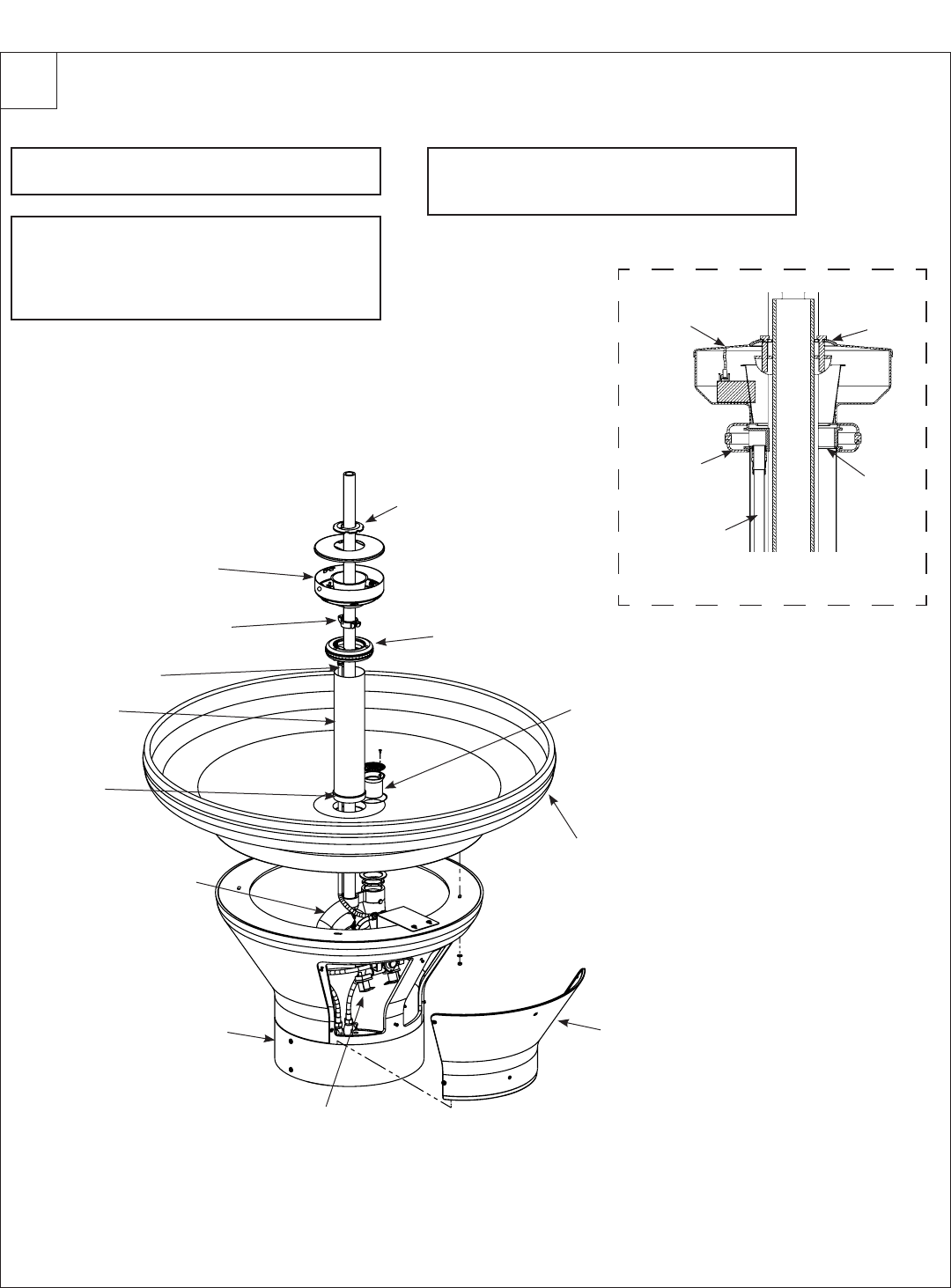

Adaptive Infrared Assembly for B and H Units and Units with

Tie Pipe Option

Install hemmed end (not sharp end) of

support tube with gasket onto bowl.

Connect 1/2" supply tubing to sprayhead with

3/8" NPT to 1/2" tube connector and place

sprayhead onto support tube. Run the tubing

down through the support tube and connect

to valve tube connector.

Insert the 1-1/2" vent pipe (supplied by

installer) down through the support tube and

thread into vented trap.

Cover

Actuator

Module

Assembly

Sprayhead

Tie Bar

Supply Tube

Section View of

B/H Unit Assembly

Cover

(107-185 (B))

(107-048 (H))

Sprayhead

(S05-054)

Drain

(S45-273)

Terreon Deep Bowl (ADA bowl shown,

classic bowl is optional) Part no. varies

with color of bowl. Contact your Bradley

Rep. for assistance.

Access Panel

(186-1456)

Pedestal Assembly

(S17-242)

Vented Trap

(111-024)

Support

Tube Gasket

(125-011)

Support Tube

STD (S57-005)

JUV (S57-006)

I.R. Module Assembly

(S50-344)

Tie Bar Pre-Pack

(S45-056)

1/2" Supply Tube

Valve Assembly

(S50-369)

B/H

(B Shown)
