1160Topshieldingassembly
Foraccess,removetheseFRUsinorder:
•“1010Batterypack”onpage58
•“1020Opticaldriveortravelcover”onpage58
•“1080WirelessWANslotcoverandPCIExpressMiniCardforwirelessWAN”onpage66
•“1090Palmrestassemblywithcables”onpage69
•“1100PCIExpressMiniCardforwirelessLAN”onpage72
•“1130Keyboard”onpage75
•“1140Keyboardbezel”onpage77

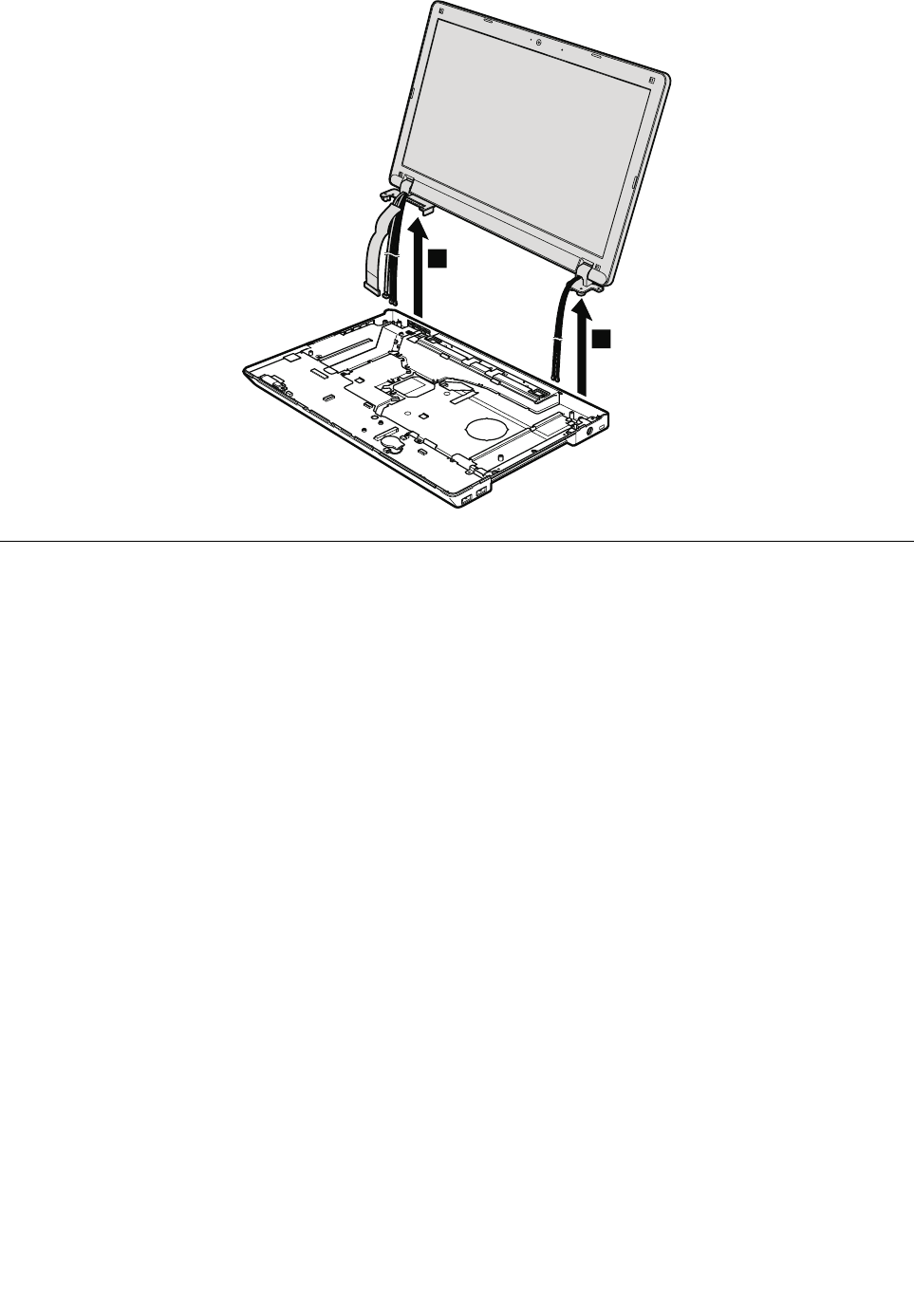

•“1150LCDunit”onpage79
82HardwareMaintenanceManual
