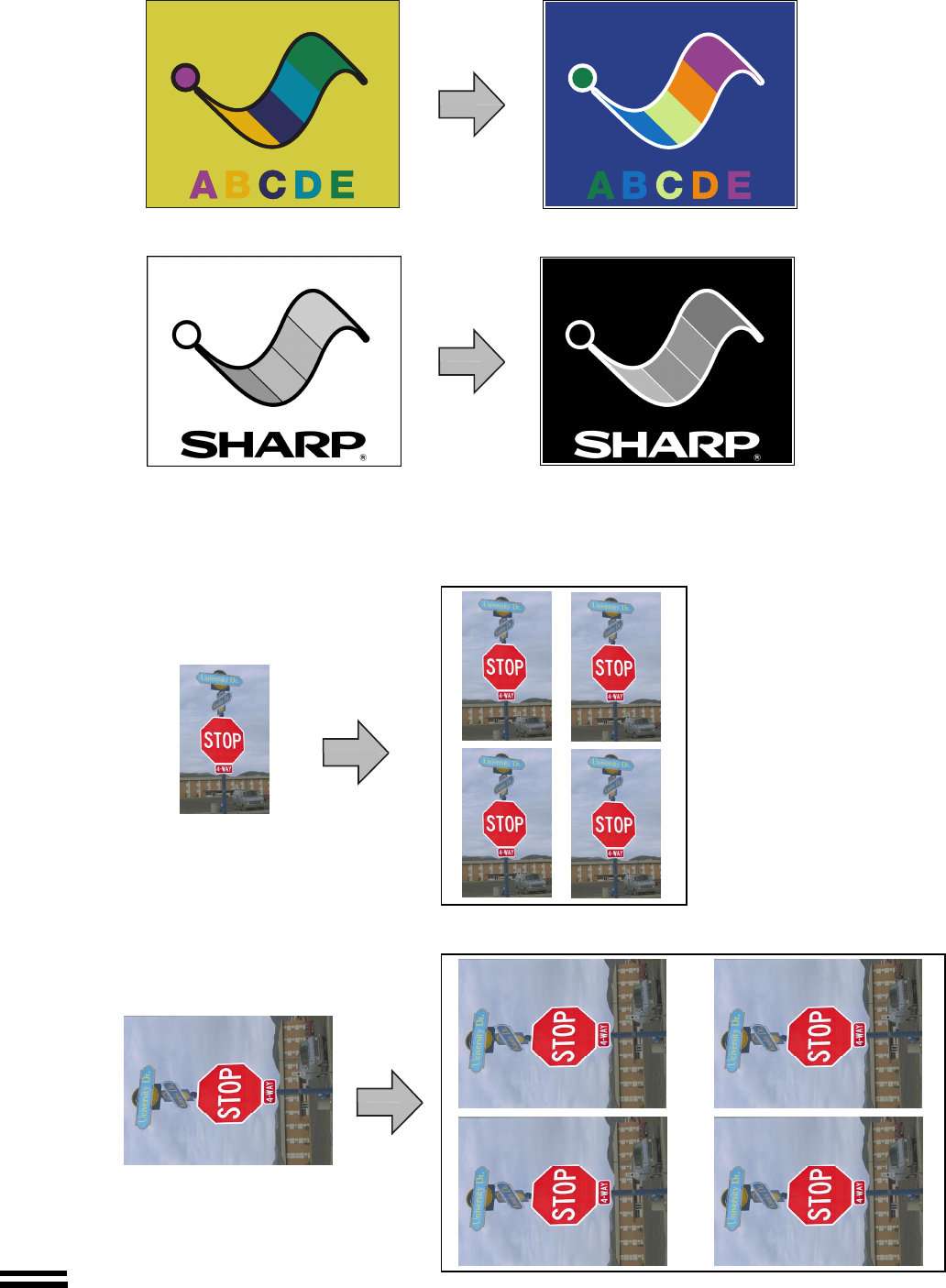

2. Neg./Pos. Reverse (See page 3-28.)

The NEG./POS. REVERSE function is used to transform a color original into its complementary colors. If this function

is selected in the black/white mode, the black and white areas of the original will be reversed.

Original

3. Photo repeat (See page 3-32.)

PHOTO REPEAT is used to produce multiple copies of a photo on a single sheet of copy paper.

Copy (8-1/2" x 11")

Copy (11" x 17")

Color copy

Black/white copy

Original (3" x 5")

Original (5" x 7")
