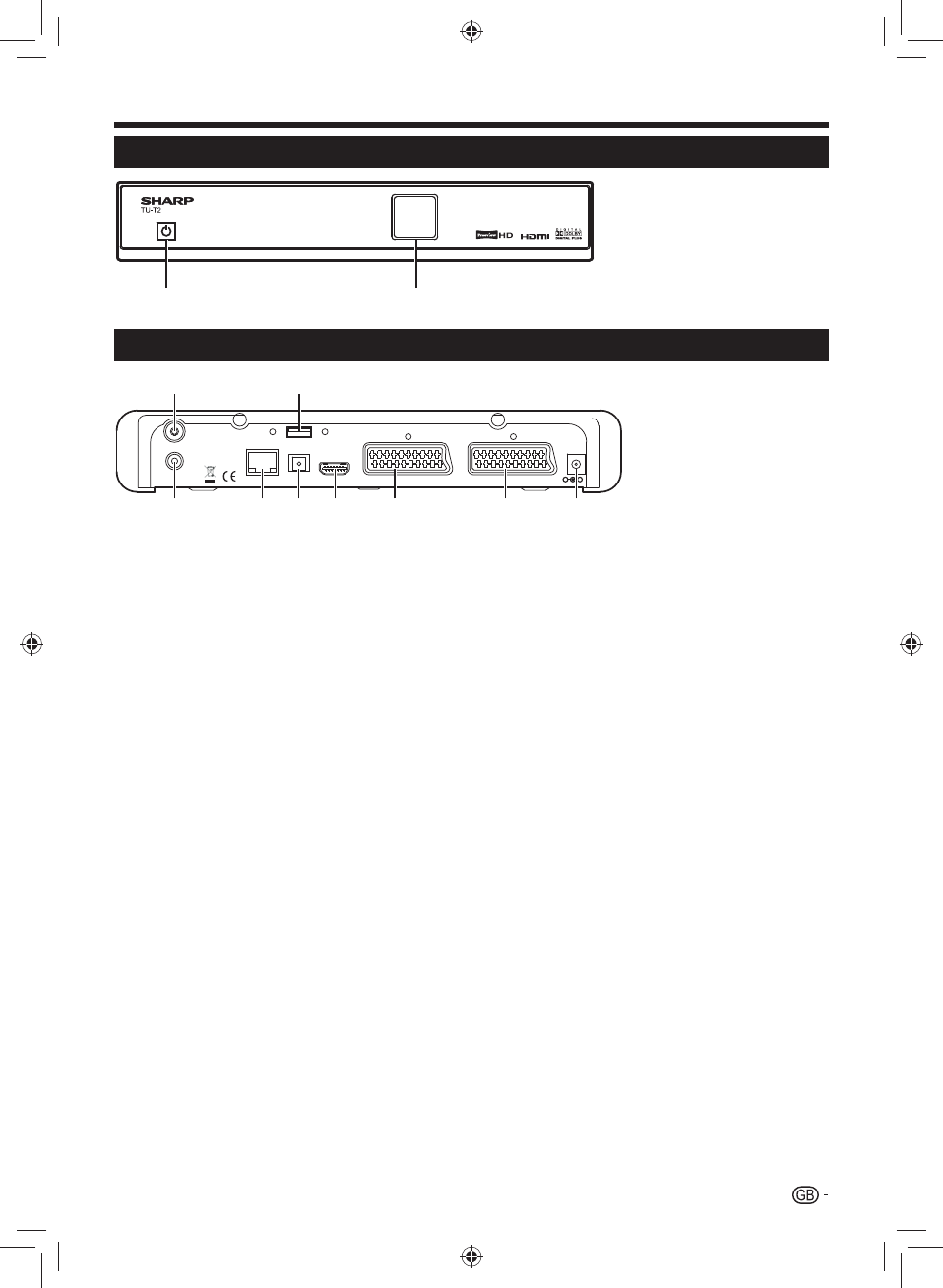

Receiver (front view)

a1 (Power button)

Display2

Receiver (rear view)

RF IN

RF OUT

USB

ETHERNET SPDIF HDMI VCR

12V DC - 2A

56 7 8 9

RF IN (Antenna in) terminal1

USB terminal - For service 2

only

RF OUT (Antenna out) 3

terminal

ETHERNET terminal - For 4

future services

SPDIF (Digital audio 5

output) terminal

HDMI terminal6

VCR (SCART) terminal7

TV (SCART) terminal8

12V DC terminal9

Introduction
