Printer Driver Settings
126
First Page Only
Select this checkbox to print the Watermark on the first page only.
Edit Watermark
Click the Edit Watermark button to open the “Edit Watermark” window. This
window lets you modify, add, or delete a Watermark.
XY Image Shift
This setting lets you shift the position of the image on the paper. Use the up
and down arrows to select amount of the shift in the X and Y directions (from
-10 to 10).

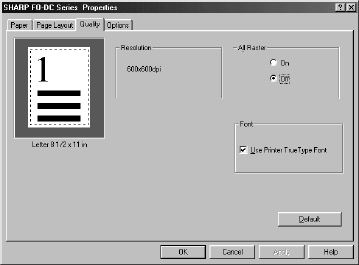

Quality tab
Resolution
The resolution is fixed at 600 dpi.
All Raster
Select On to print images using Raster Graphics (the image will consist of a
group of dots similar to bitmap data or an image captured with a scanner) .
Limitation:
When any of the following settings are selected, the All Raster function cannot
be selected.
Scaling: Any setting except 100%
Fit to Paper: On
N-up: Any setting except Off
all.bookPage126Wednesday,December18,20028:17AM
