Sharp AR-C360P User’s Guide

Troubleshooting > 74

Paper jams – Finisher (optional accessory)

Check Finisher, paper jam/paper remains

Use the Help button on the printer control panel to check the number

displayed. You will need this to be able to clear the paper jam. The

following paragraphs explain what to do for each of the indicated

numeric codes.

591, 592, 593, 599/ 643, 645 (paper jam around Finisher)

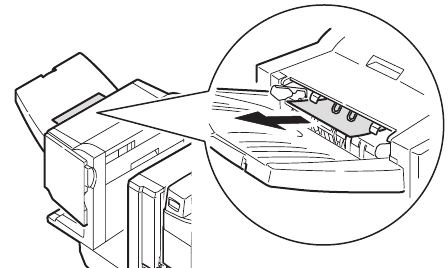

1. Remove any paper at the Finisher paper exit.
