No.
Parts
Model Note
Name Function/Operation
1 SPF unit (Document cover)
2 Front cover Opened when installing or removing the OPC cartridge and
the developer cartridge or removing a paper jam.
3 Paper exit tray Receives printed paper.
4 Operation panel Allows various setting in the copy mode and test command
operations.
5 Document table A document is set to the left corner reference.
6 Paper feed tray Sets print paper.
7 Paper guide Adjusts the paper width.
8 Power switch Turns on/off the main power.
9 Power connector Connects with the AC power cord.
10 Printer interface connector Connects with the host computer. (Parallel interface)
(IEEE-1284)
Allows connection with two
host computers.
11 Paper release lever Put the lever straight when setting paper to release paper
feed drive. Put the lever down to allow paper feed.
12 LINE jack Used to connect with the TEL line.
13 TEL jack Used to connect with the external TEL line.

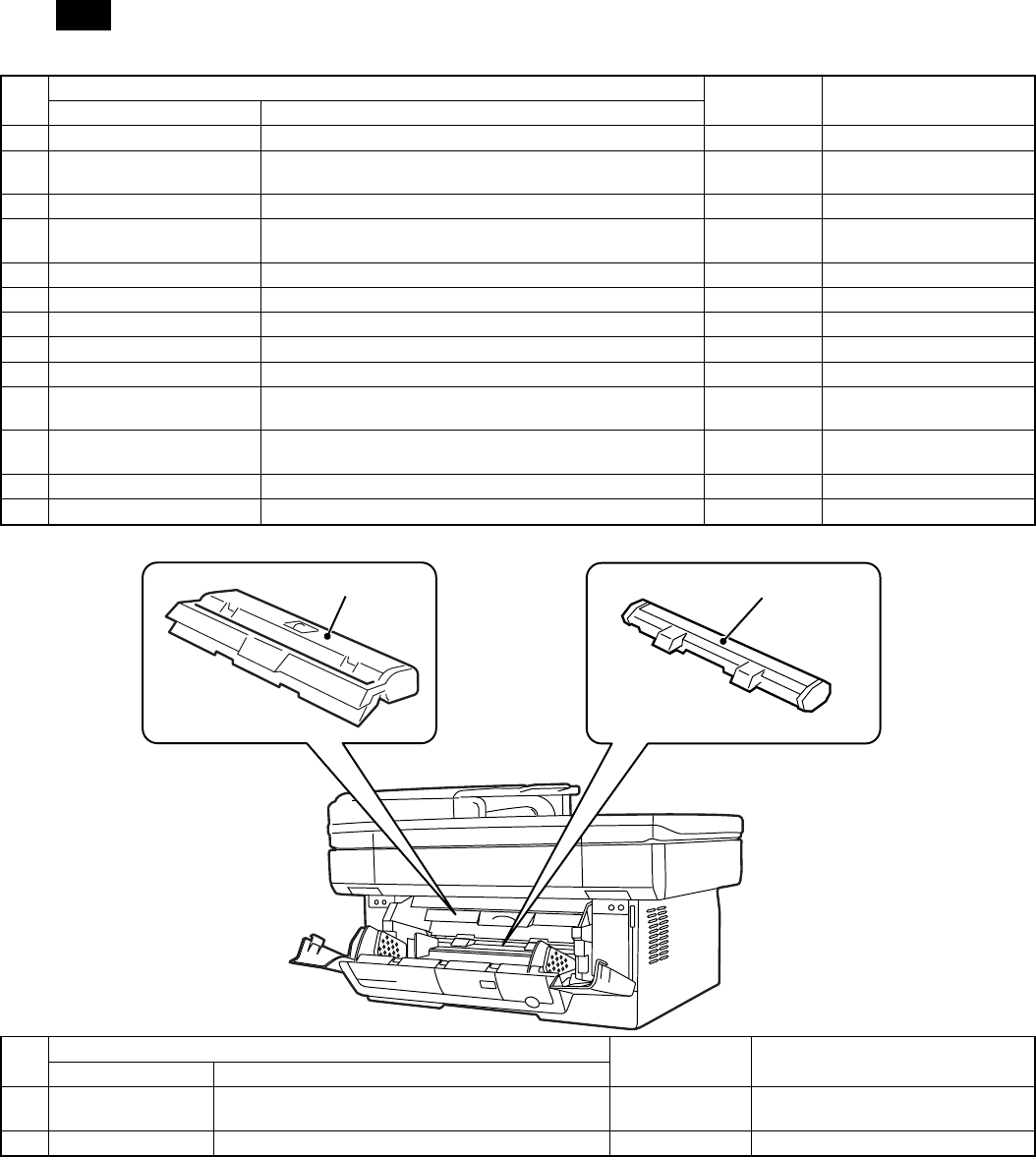

(2) Internal operation parts
No.
Parts
Model Note
Name Function/Operation
1 Developer cartridge Converts latent electrostatic images into visible
images (toner images).
Common Life (3K print)
2 OPC cartridge Forms latent electrostatic images. Common Life (20K print)
1)
2)
FO-3800M
5 – 2
