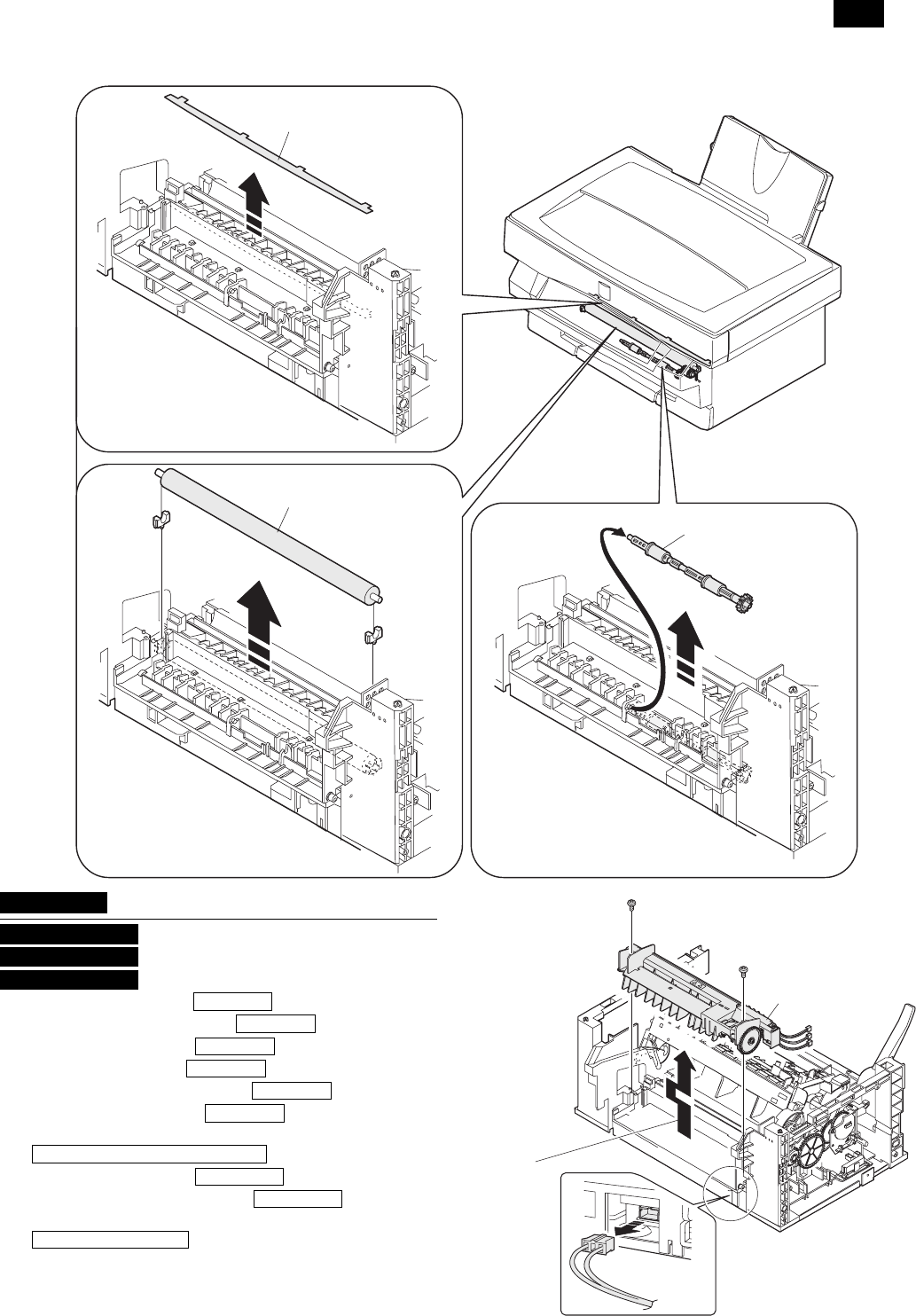

S007/Ua001 Fusing unit
S007/Ua001/P001 Pressure roller
S007/Ua001/P002 Paper guide sheet
S007/Ua001/P003 Paper exit roller U
(1) Remove the rear cabinet S001/P001 .
(2) Remove the front upper cabinet S001/P002 .
(3) Remove the right cabinet S001/P003 .
(4) Remove the left cabinet S001/P004 .
(5) Remove the document table glass S001/P007 .
(6) Remove the fan motor unit S010/P001 .
(7) Remove the operation unit
S002/P001, S002/P002, S002/P003 .
(8) Remove the scanner unit S004/Ua001 .
(9) Remove the MCu (PCU) PWB unit S009/Ua002 .
(10) Remove the toner cartridge and the photoconductor cartridge
S006/P001, S006/P002 .
(11) Remove the connector screw, and remove the fusing unit (S007/
Ua001).
#1. Slide to the left and lift and remove.
S007/Ua001/P002/CLN
S007/Ua001/P001/CLN
S007/Ua001/P003/CLN
S007/Ua001
#1
FO-3800M
9 – 26
