Cleaning the Scanning Glass and Rollers

111

10. Maintenance

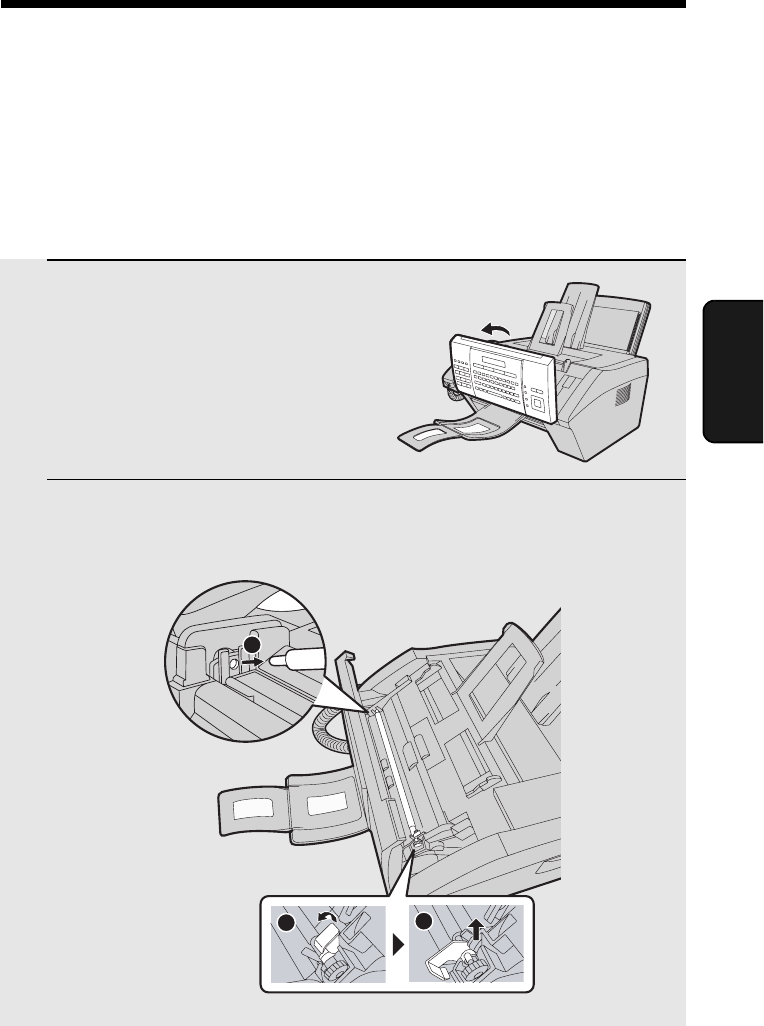

1 Open the operation panel.

2 Rotate the lever toward you and down (➊), and then pull the lever and

right end of the roller up (

➋). Pull the white roller out to the right (➌).

Cleaning the Scanning Glass and Rollers

Any dirt, fingerprints, or other small debris on the scanning glass will degrade

the quality of faxes, scanned images, and copies. Clean the scanning glass

and roller frequently as explained below.

10. Maintenance
