IBX-530B-270 Embedded System

Page 66

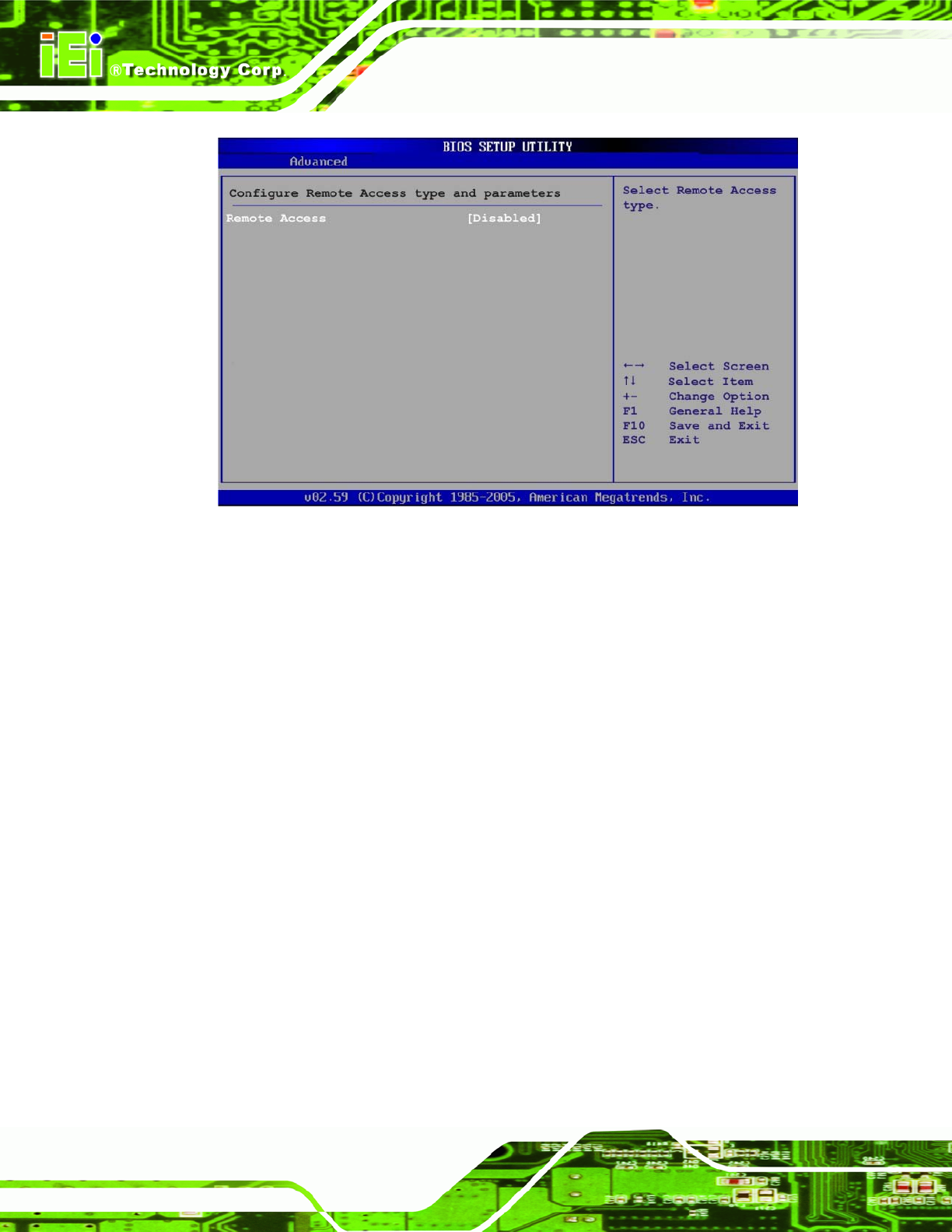

BIOS Menu 11: Remote Access Configuration [Advanced]

 Remote Access [Disabled]

Use the Remote Access option to enable or disable access to the remote functionalities

of the system.



Disabled D

EFAULT

Remote access is disabled.



Enabled

Remote access configuration options shown below

appear:

 Serial Port Number

 Serial Port Mode

 Redirection after BIOS POST

 Terminal Type

These configuration options are discussed below.
