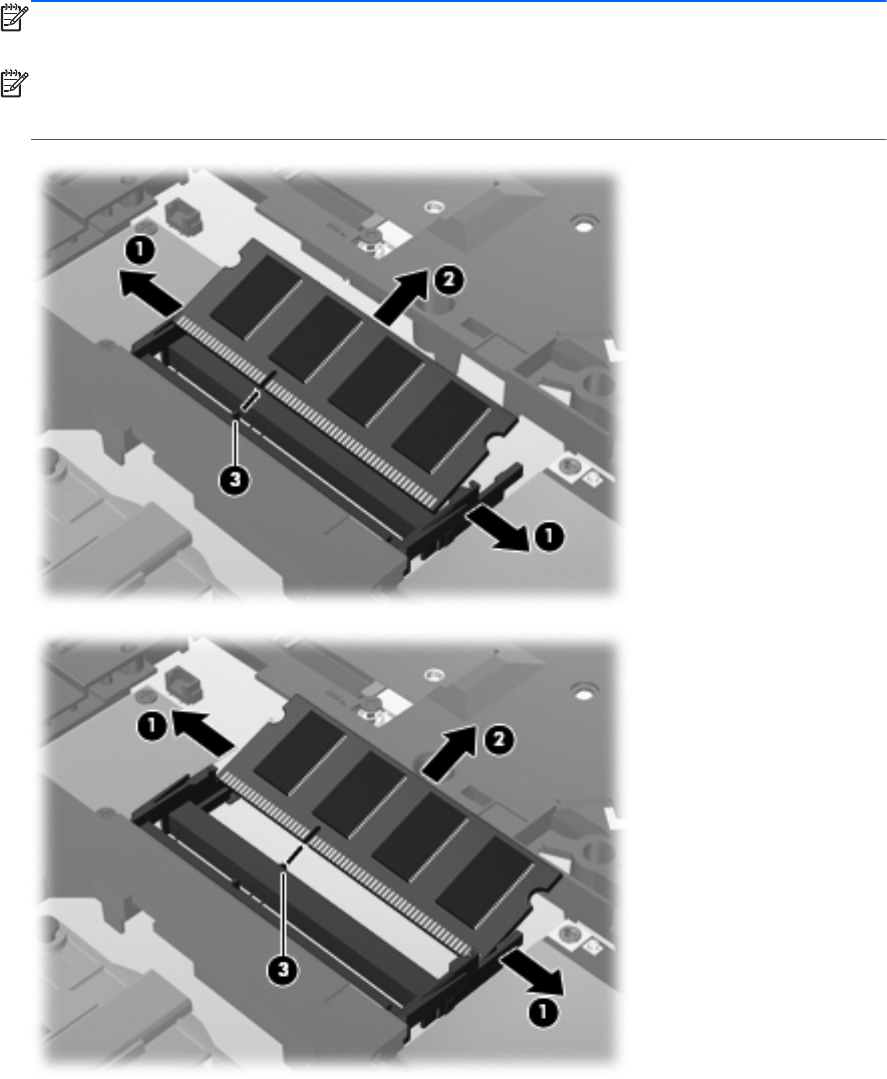

3. Remove the memory module (2) by pulling the module away from the slot at an angle.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the

memory module slot.

NOTE: The computer uses two memory slots. The top slot houses the expansion memory

module and is shown in the first image below. The bottom slot houses the primary memory

module and is shown in the second image below.

Reverse this procedure to install a memory module.

Component replacement procedures 73
