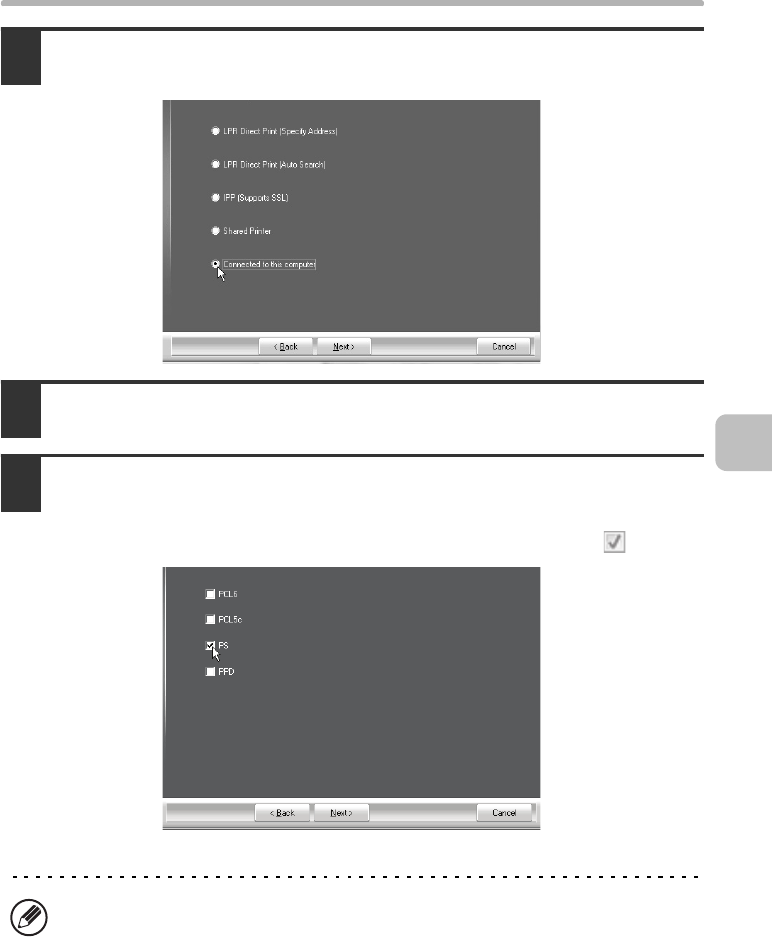

INSTALLING THE PRINTER DRIVER / PC-FAX DRIVER

When you are asked how the printer is connected, select [Connected

to this computer] and click the [Next] button.

When the port selection window appears, select the port that the PCL6

printer driver is using (USB001, etc.) and click the [Next] button.

When the printer driver selection window appears, remove the [PCL6]

checkmark and select the printer driver to be installed, and then click

the [Next] button.

Click the checkbox of the printer driver to be installed so that a checkmark ( ) appears.

*The screen shows the installer for the MX-C311/C381.

• When the PC-Fax driver is being installed, this screen does not appear. Go to

the next step.

• If you are using the MX-C310/C380/C400, the PS3 expansion kit is required

to use the PS printer driver or the PPD driver.

•

The [PPD] checkbox only appears if you are using Windows 2000/XP/Server 2003/

Vista/Server 2008.
