SADDLE STITCH FINISHER
3-23
3
10

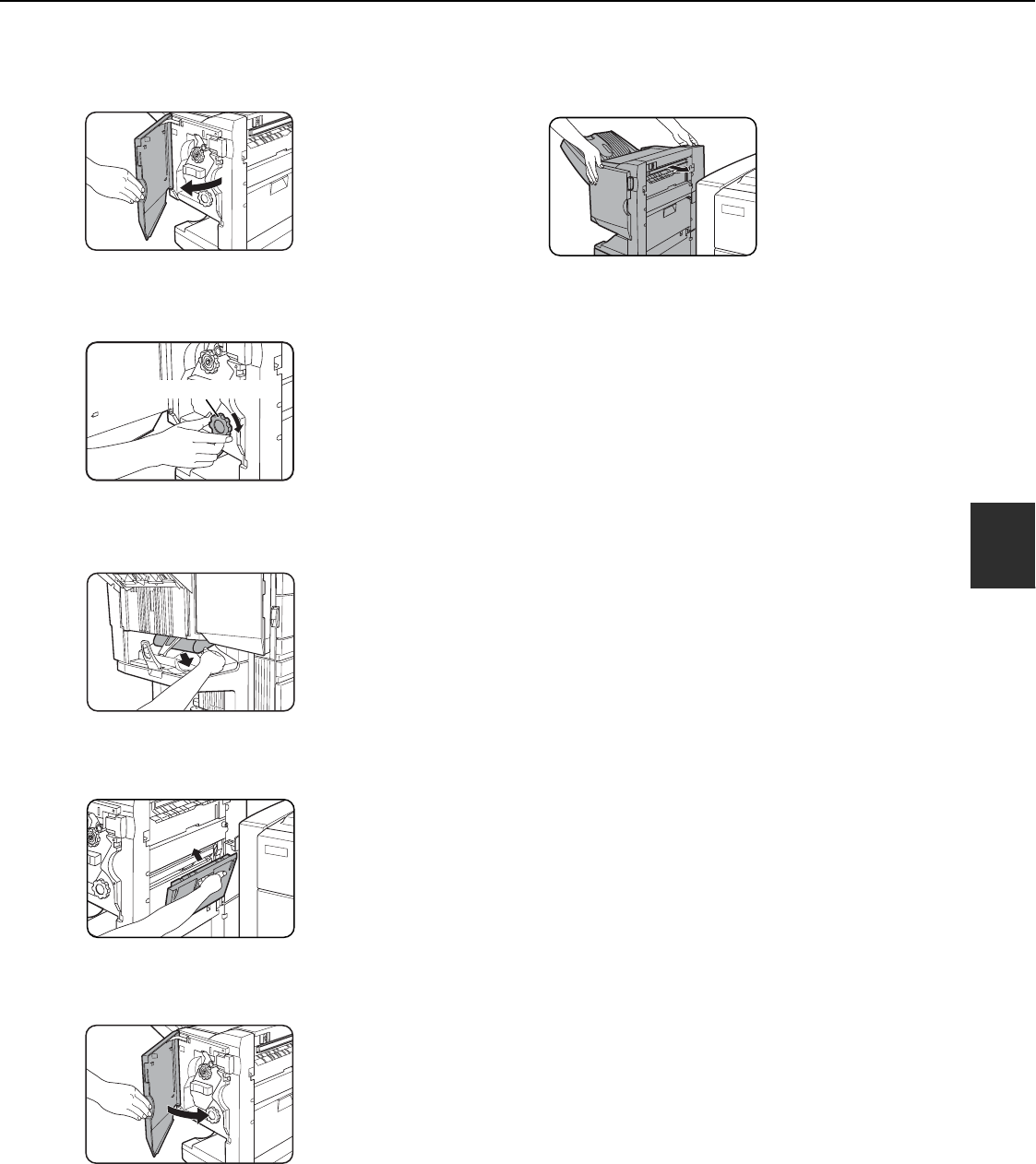

Open the front cover.
11
Rotate roller rotating knob D in the direction of
the arrow.
12
Remove any misfed paper from the saddle
stitch tray.
Remove the paper
gently, taking care not to
tear it.
13
Close the cover of the saddle stitch section.
14
Close the front cover.
15
Push the saddle stitch finisher back onto the
machine.
Roller rotating knob D
