2.3.3 Top Cover Unit

(1) Remove the top cover (see section 2.3.1).

(2) Remove the rear cover (see section 2.3.10).

(3) Remove the left side cover (see section 2.3.12).

(4) Remove the right side cover (see section 2.3.13).

(5) Remove the shield plates A and B (see section 2.3.23), and unplug the connector to separate

the top cover.

(6) Disengage the top cover unit 1 at two places to detach it.

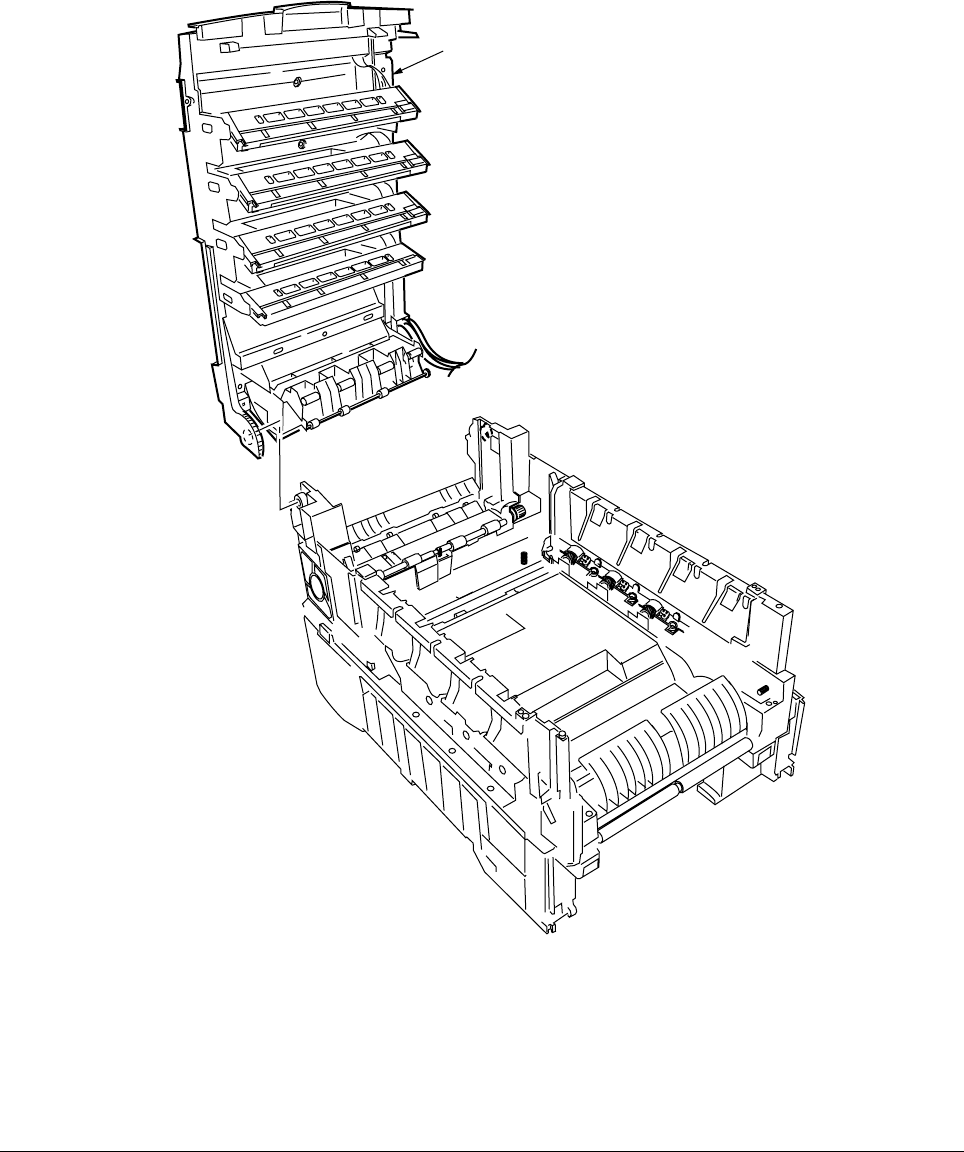

Figure 2-3-3 Top Cover Unit
