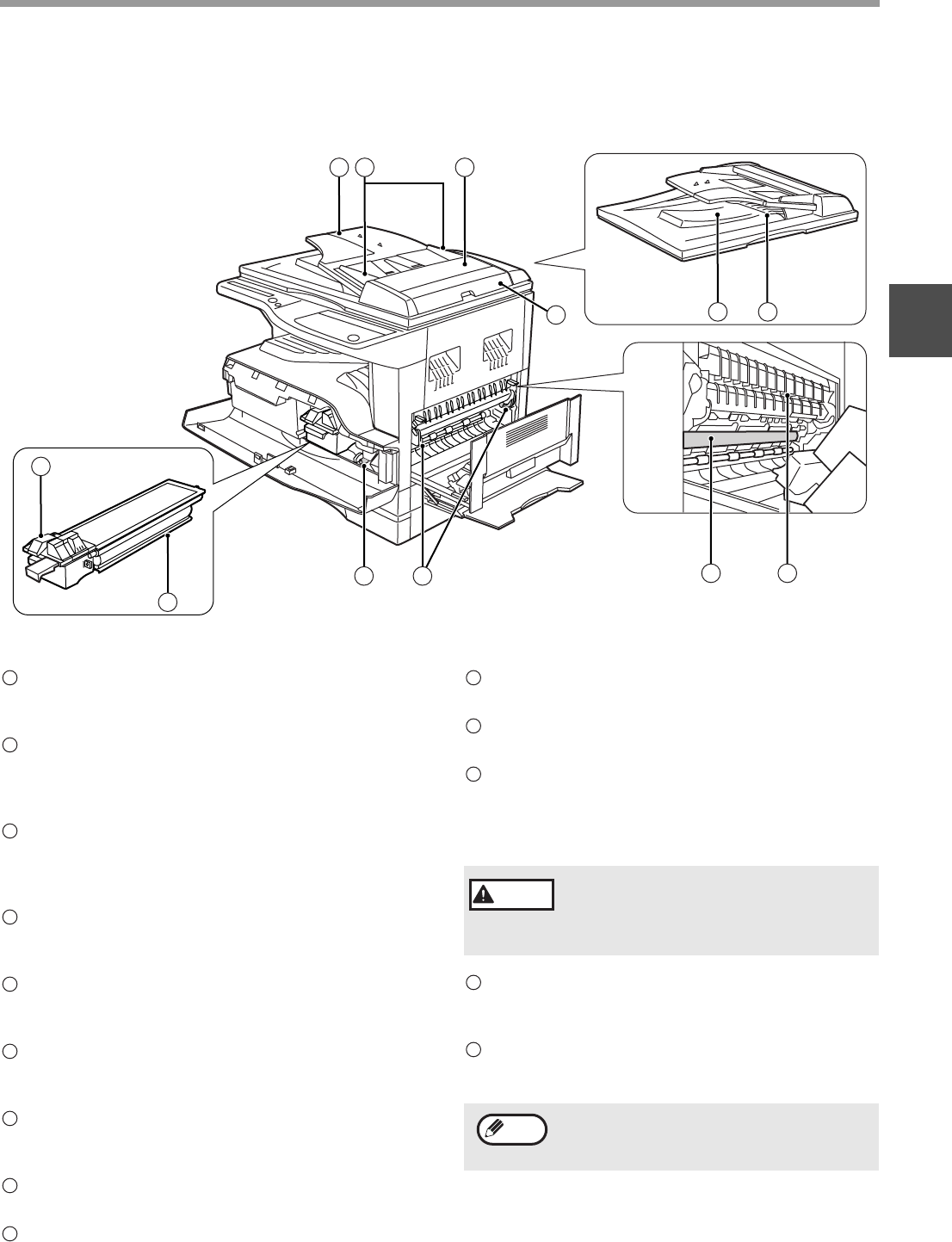

BEFORE USING THE MACHINE
1
Parallel port
Connect to your computer to use the printer
function. (Software Setup Guide)
USB 2.0 port (when the dual function board is
installed)
Connect to your computer to use the printer and
scanner functions. (Software Setup Guide)
Document feeder tray (when the SPF/RSPF is
installed)
Place the original(s) that you wish to scan face up
here. Holds up to 40 originals.
Original guides (when the SPF/RSPF is
installed)
Adjust to the size of the originals.
Feeding roller cover (when the SPF/RSPF is
installed)
Open to remove misfed originals. (p.63)
Right side cover (when the SPF/RSPF is
installed)
Open to remove misfed originals. (p.63)
Exit area (when the SPF/RSPF is installed)
Originals exit the machine here after
copying/scanning.
Reversing tray (when the RSPF is installed)
Pull out to remove misfed originals. (p.64)
Toner cartridge lock release lever
To replace the toner cartridge, pull out the toner
cartridge while pushing on this lever.
Toner cartridge
Contains toner. (p.70)
Roller rotating knob
Turn to remove misfed paper. (p.65, p.66)
Fusing unit release levers
To remove a paper misfeed in the fusing unit, push
down on these levers and remove the paper.
(p.66)
Photoconductive drum
Copy images are formed on the photoconductive
drum.
Fusing unit paper guide
Open to remove misfed paper.
2018
24
25
22 23
21
26 27
19
2928
16
17
18
19
20
21
22
23
24
The fusing unit is hot. Do not touch
the fusing unit when removing misfed
paper. Doing so may cause a burn or
injury.
The model name can be seen to the machines
front cover.
25
26
27
Warning
28
29
Note
- FOR YOUR RECORDS 2
- CONTENTS 3
- USER SETTINGS 4
- TROUBLESHOOTING 4
- ROUTINE MAINTENANCE 4
- APPENDIX 4
- CAUTIONS 5
- CAUTIONS ON HANDLING 6
- USING THE MANUAL 7
- SPF AND RSPF 8
- DIFFERENCES BETWEEN MODELS 8
- MAIN FEATURES 9
- BEFORE USING THE MACHINE 10
- OPERATION PANEL 12
- CLEAR ALL 13
- POWER ON AND OFF 14
- LOADING PAPER 15
- Loading the paper tray 16
- Loading the bypass tray 17
- Envelopes 18
- Front guide 19
- Left guide 19
- COPY FUNCTIONS 20
- Copying from the SPF/RSPF 21
- SELECTING THE TRAY 23
- REDUCTION/ENLARGMENT/ZOOM 24
- PRESET RATIO 25
- (XY ZOOM copying) 26
- TWO-SIDED COPYING USING THE 28
- BYPASS TRAY 28
- AUTOMATIC TWO-SIDED COPYING 29
- Using the document glass 30
- Using the RSPF 30
- ORIGINAL TO COPY 31
- DUAL PAGE COPYING 32
- INTERRUPTING A COPY RUN 33
- CONVENIENT COPY FUNCTIONS 34
- Using the SPF/RSPF 35
- COPYING MULTIPLE ORIGINALS 36
- ONTO A SINGLE SHEET OF PAPER 36
- Setting the layout pattern 37
- CREATING MARGINS WHEN COPYING 38
- ERASING SHADOWS AROUND THE 39
- EDGES OF A COPY 39
- PRINTER/SCANNER FUNCTIONS 40
- USING THE PRINTER MODE 41
- USING THE SCANNER MODE 42
- OPERATION IN COPY, PRINTER 43
- AND SCANNER MODES 43
- ENABLING TONER SAVE MODE 45
- CUSTOMIZING SETTINGS 46
- Base settings 49
- SETTINGS FOR AUDITING MODE 50
- READ-END 51
- Auditing mode 52
- Account number entry 52
- Account number change 52
- Account number deletion 52
- Number of copies per account 52
- Resetting account 53
- MACHINE/COPYING PROBLEMS 55
- Notice page printed 63
- Removing the software 63
- INDICATORS AND DISPLAY 64
- MESSAGES 64
- MISFEED REMOVAL 65
- MISFEED IN THE BYPASS TRAY 66
- B. Misfeed in the fusing area 68
- Close the upper paper tray 70
- (AR-M205 only) 71
- REPLACING THE TONER CARTRIDGE 72
- PERIPHERAL DEVICES 76
- SINGLE PASS FEEDER/ 77
- REVERSING SINGLE PASS FEEDER 77
- 250-SHEET PAPER FEED UNIT/ 77
- 2 X 250-SHEET PAPER FEED UNIT 77
- STORAGE OF SUPPLIES 78
- Printer Function 80
- Scanner Function 81
- SOFTWARE LICENSE 82
- MATERIAL SAFETY DATA SHEET 84
- WARNING: 95
- SHARP CORPORATION 96
