Disassembly and Reassembly

4-2 Samsung Electronics

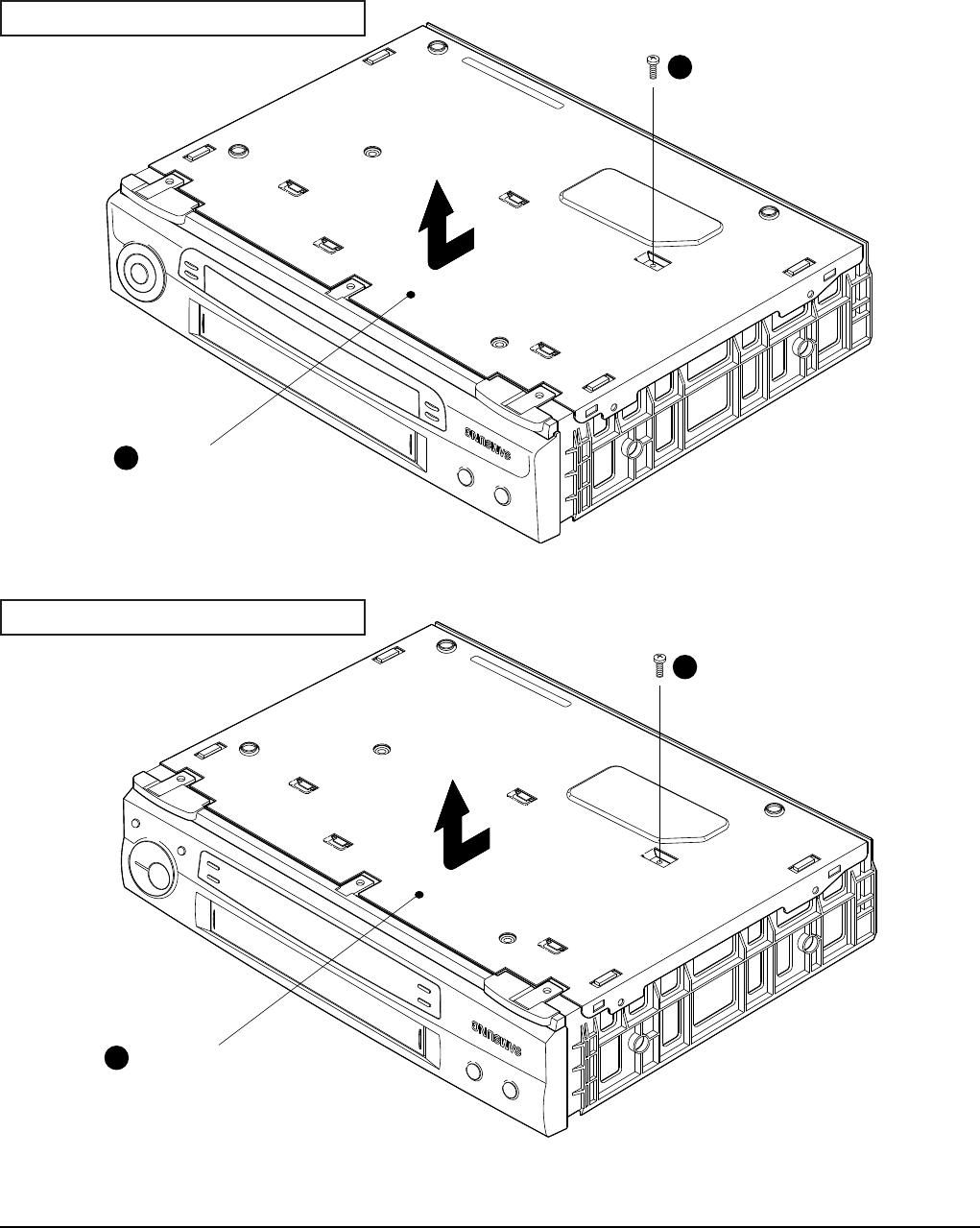

4-1-2 Bottom cover removal

REMOVE 1 SCREW

(BH;1-3X12 YELLOW)

1

"A"

LIFT UP THE BOTTOM COVER

IN THE DIRECTION ARROW "A"

2

1. Remove 1 screw.

2. Lift up the bottom cover toward arrow ÒAÓ.

REMOVE 1 SCREW

(BH;1-3X12 YELLOW)

1

LIFT UP THE BOTTOM COVER

IN THE DIRECTION OF ARROW "A"

2

"A"

Fig. 4-2 Bottom Cover Removal

SV-A10G/SP-A10G/SVR-17A/SPR-17A

SV-A11G/SP-A11G/SVR-17B/SPR-17B
