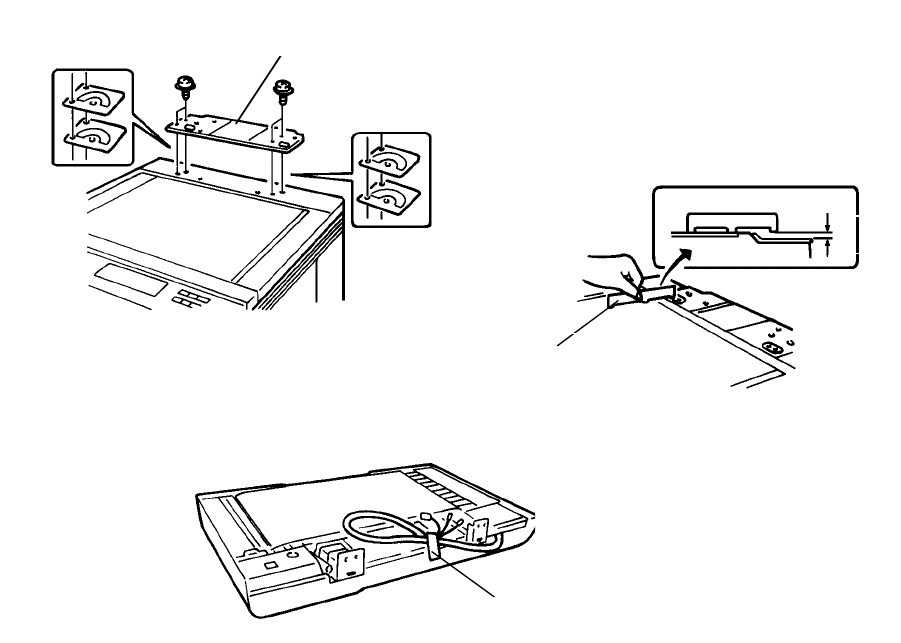

4. Secure the DF mounting bracket [A] (4 screws).

5. Adjust the height of the DF mounting bracket as explained below:

1) Set the E plate [B] on the exposure glass as shown and measure the

clearance "a" between the DF mounting bracket and the E plate with a

2) Remove the DF mounting bracket and insert spacers [C] until the

clearance "a" is between 0 mm and 0.3 mm.

6. Remove the strip of tape [D].

1 December 1990
